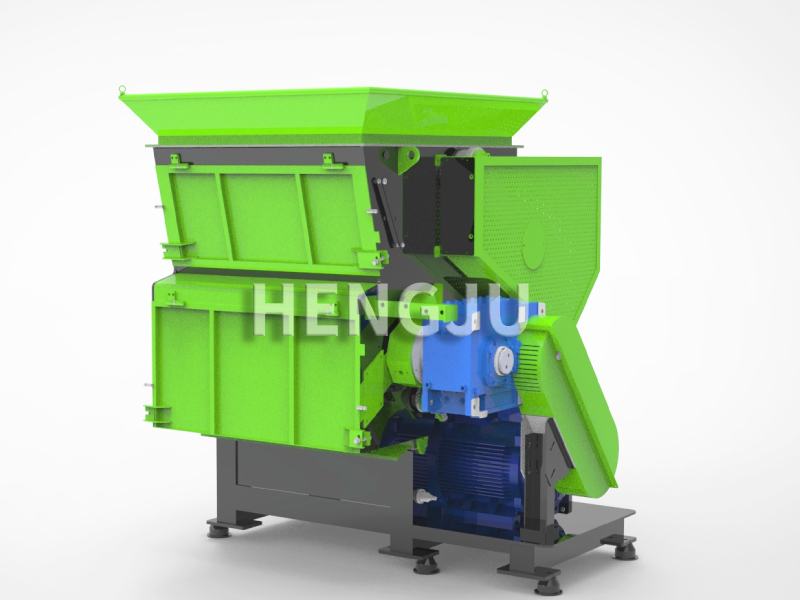

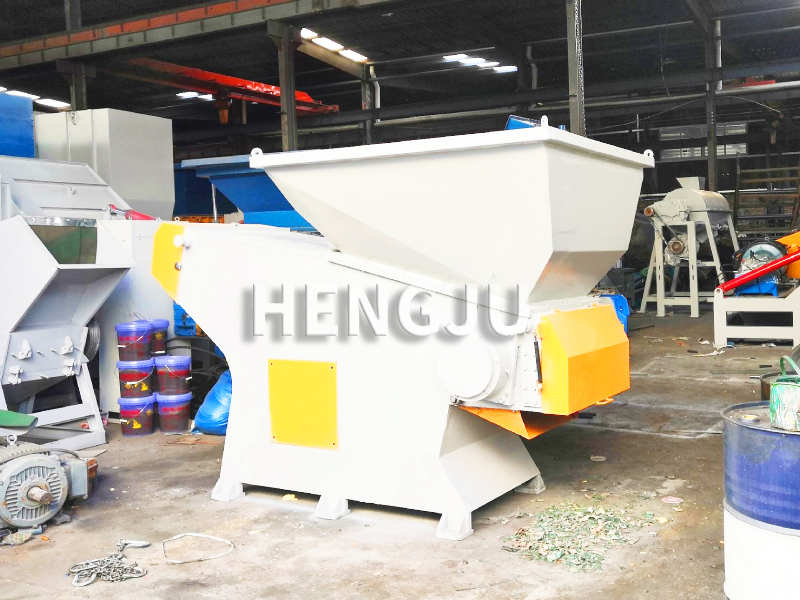

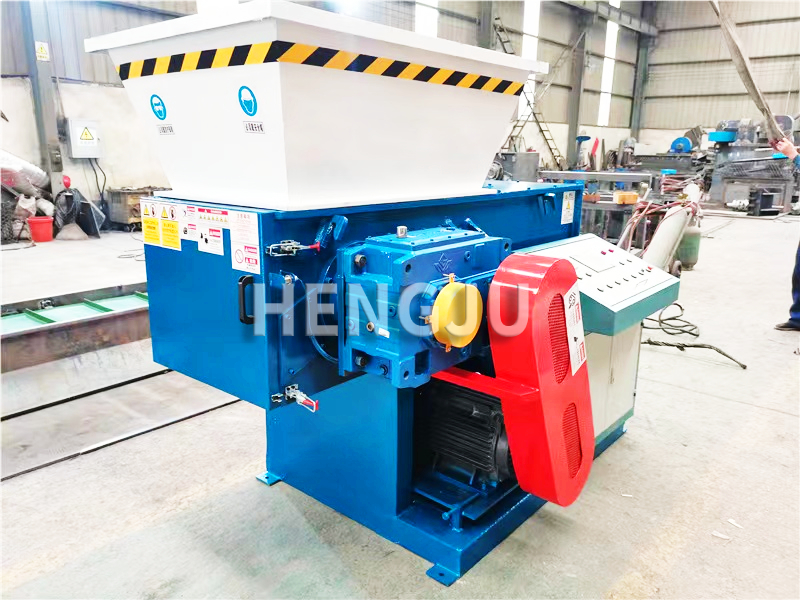

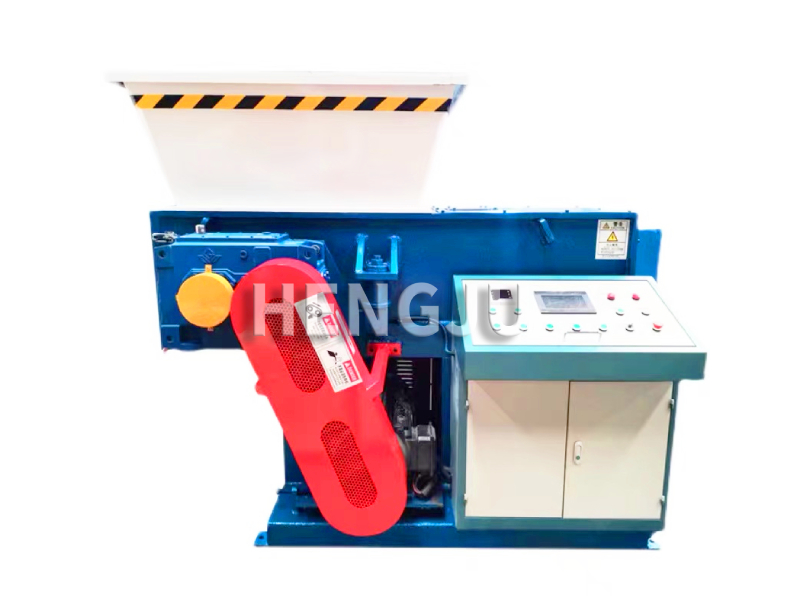

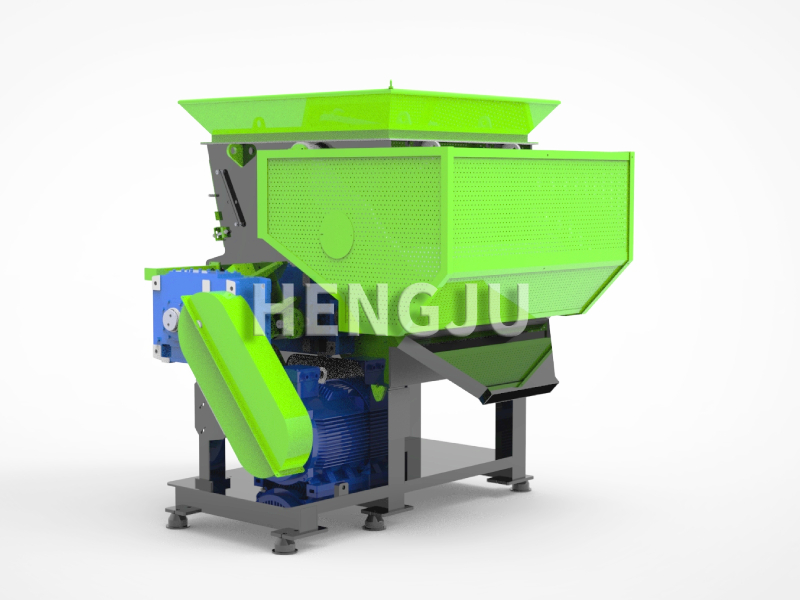

Single Shaft Shredder Machine

This single shaft waste shredder is new designed especially for shredding various big solid material, unmanageable material, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle. This waste shredder has the advantages of stable running lower noise and big torque.

Online Inquiry

Description

The single shaft waste waste waste shredder is mainly used in all kinds of hollow or solid plastic material. The shreddr machine is suitable to PE, PP, PET, ABS, PVC and engineering plastics. This single shaft waste waste waste shredder is new designed especially for shredding various big solid material, unmanageable material, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle. This waste waste waste shredder has the advantages of stable running lower noise and big torque.

Technical parameter

Shredder Model	SX600	SX800	SX1000	SX1200	SX1500
Diameter Rotary	255mm	255mm	255mm	300mm	300mm
Rotate the number of knives	26	45	58	71	88
Rotatethe cutter shaft speed	82rpm	87rpm	87rpm	87rpm	87rpm
Number of fixed knives (pieces)	1	2	2	2	2
Hydraulic powder(kw)	2.2	3	5.5	5.5	7.5
Working pressure (Mpa)	6-12	6-12	6-12	6-12	6-12
Feeding caliber	600mm*950mm	800mm*950mm	1000mm*1000mm	1200mm*1100mm	1500mm*1250mm
Power of main motor(Kw)	22	37	55	75	45*2
Host weight (kg)	3500	4500	6000	8000	9500
External dimension(mm)	300016002200	330018002400	385020002700	400022002800	450025002800
Max yield (kg/h)	650	900	1000	1200	1500
