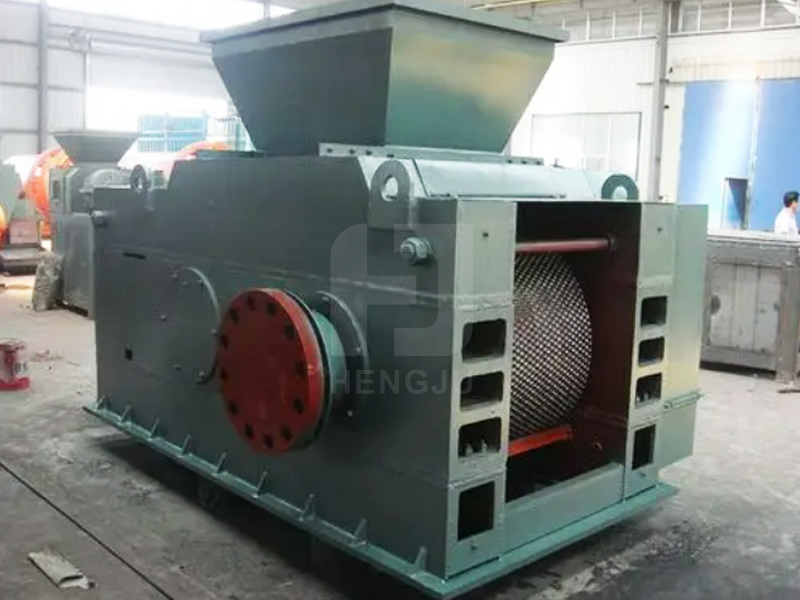

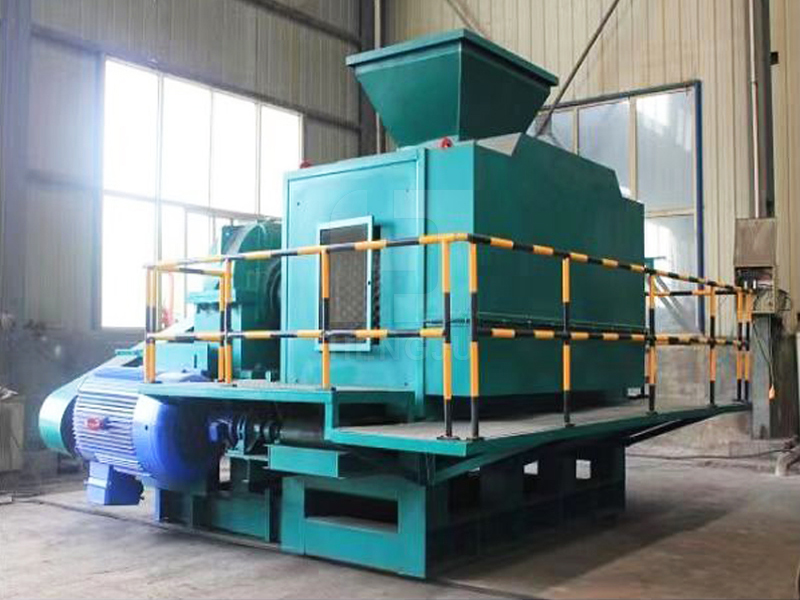

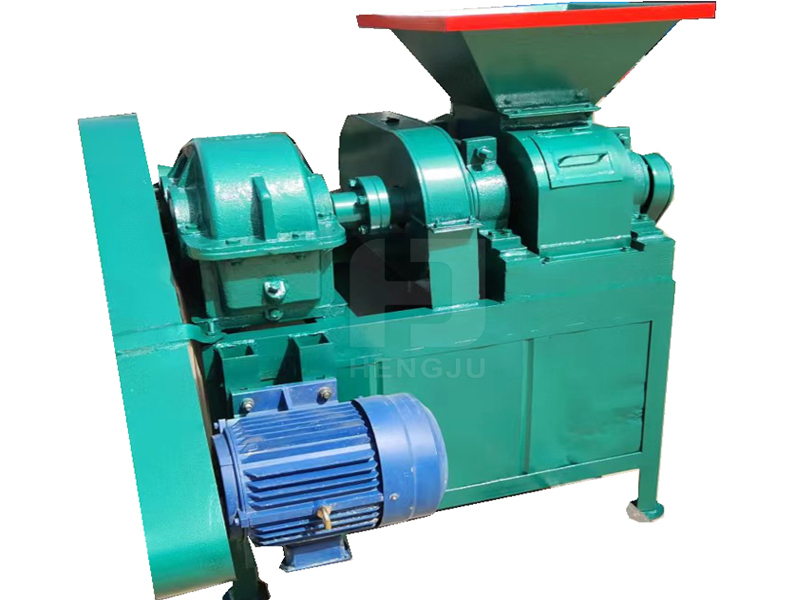

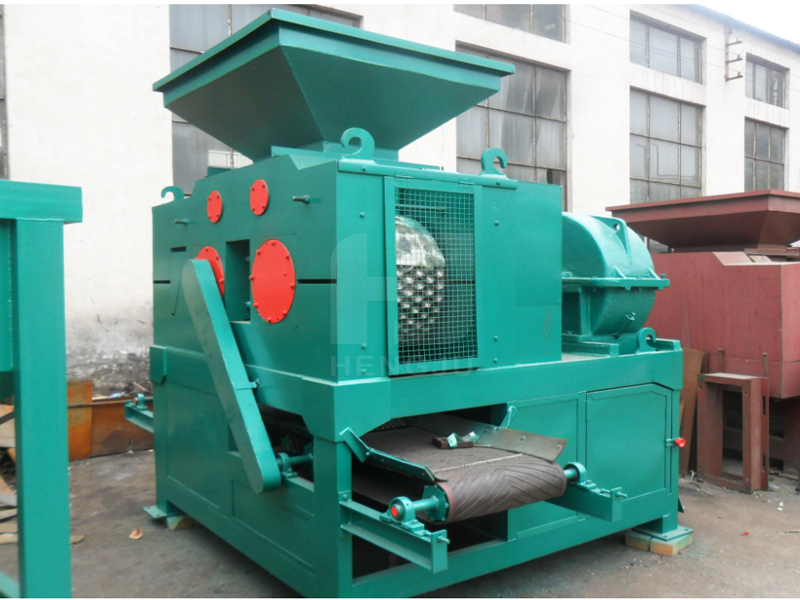

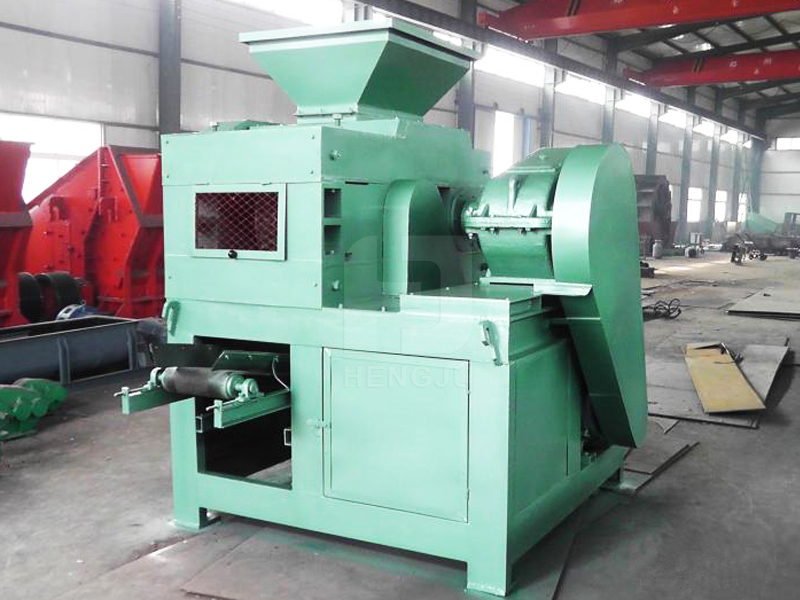

Ball Press Machine
This machine is used for briquetting fluorita powder,iron ore concentrate,coke powder and desulfurizing gypsum who need stronger power and high pressure.and the roller is made of hard material,with good wear resistance,improving lifetime of the roller.
Raw material can be fluorite powder,iron ore concentrate,coke powder and desulfurization gypsum ans so on.
Suitable for Processing:
1.Charcoal powder / charcoal dust: raw material powder, silicomanganese alloy, etc.
2.Coal: Coal powder, middle coal, slime peat, coke powder, lignite etc.
3.Other material: fireproof material, desulfurization gypsum, dolomite etc.
4.Shape of Final Coal Briquettes: Can be round, pillow, square, oval.
5.Size of Briquettes: 18mm-80mm (can be made according to clients requests)
Product Features:
1,large Output:1-50 ton per hour output for various models,24 hours of continuous work.
2.High Pressure:four rollers double pressure structure,hydraulic systerm provide.
3.Sturdy and Durable:made of 18mm steel,seamless.
| Model | Reducer | Power（kw） | Capacity（ton） | Weight（kg） | External dimensions(mm) |
|---|---|---|---|---|---|
| HJ-150 | ZQ250 | 3 | 0.8 | 200 | 800*600*700mm |
| HJ-200 | ZQ350 | 5.5 | 1.2-1.5 | 500 | 1100*900*1100mm |
| HJ-290 | ZQ350 | 5.5 | 1-3 | 800 | 1600*1200*1400mm |
| HJ-360 | ZQ400 | 7.5-11 | 2-4-6 | 1100 | 2100*1300*1760mm |
| HJ-430 | ZQ400 | 15-18.5 | 4-7 | 2200 | 2300*1530*1900mm |
| HJ-500 | ZQ550 | 22-37 | 50-10-15 | 4500 | 2600*1750*2100mm |
| HJ-650 | ZQ650 | 37-45 | 8-13 | 5200 | 3420*2000*2200mm |
| HJ-750 | ZQ750 | 45-75 | 10-15-20 | 6800 | 3700*2550*2600mm |
| HJ-850 | ZQ850 | 75-110 | 15-20 | 8000 | 3900*2600*2700mm |
| HJ-1000 | ZQ1000 | 110-132 | 20-25-30 | 9500 | 4000*2800*2800mm |
Finished product display
Size of Briquettes: 18mm-80mm (can be made according to clients requests)
Applicable raw materials
Raw material can be fluorite powder,iron ore concentrate,coke powder and desulfurization gypsum ans so on.

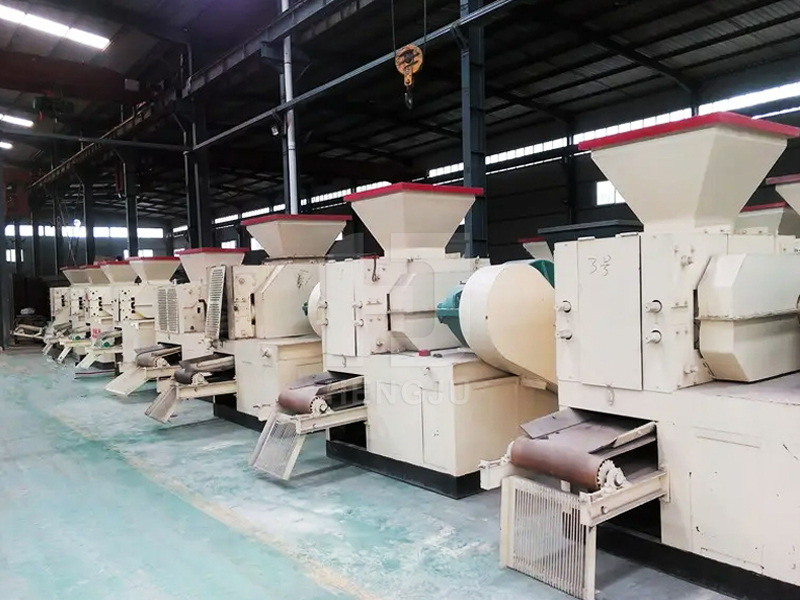

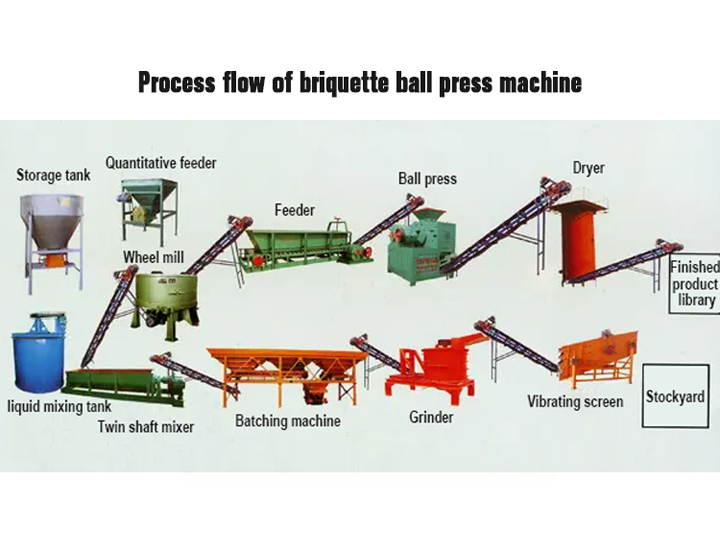

Customization of production line for ball pressing machine
This machine is used for briquetting fluorita powder,iron ore concentrate,coke powder and desulfurizing gypsum who need stronger power and high pressure.
-
