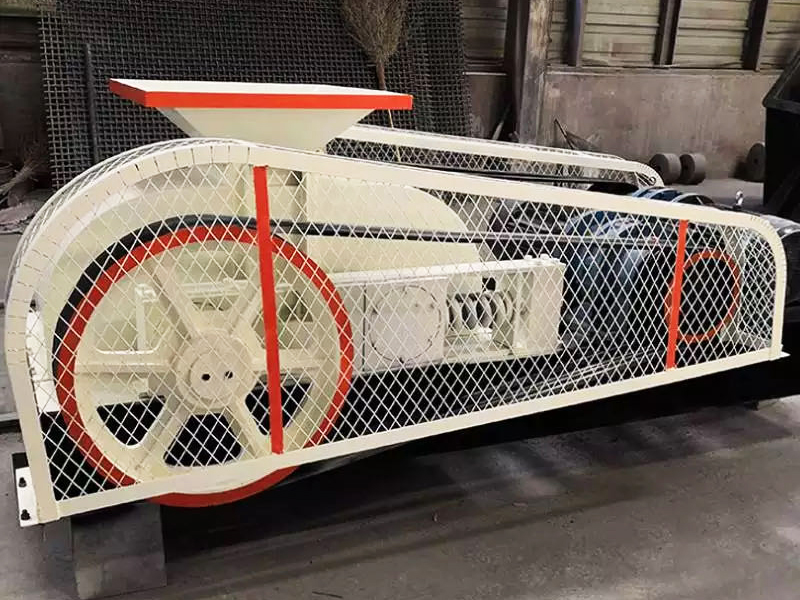

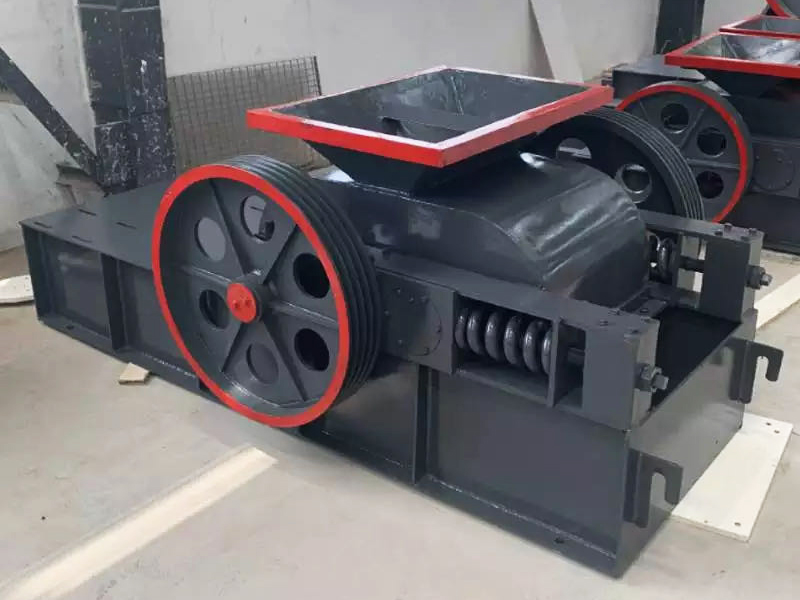

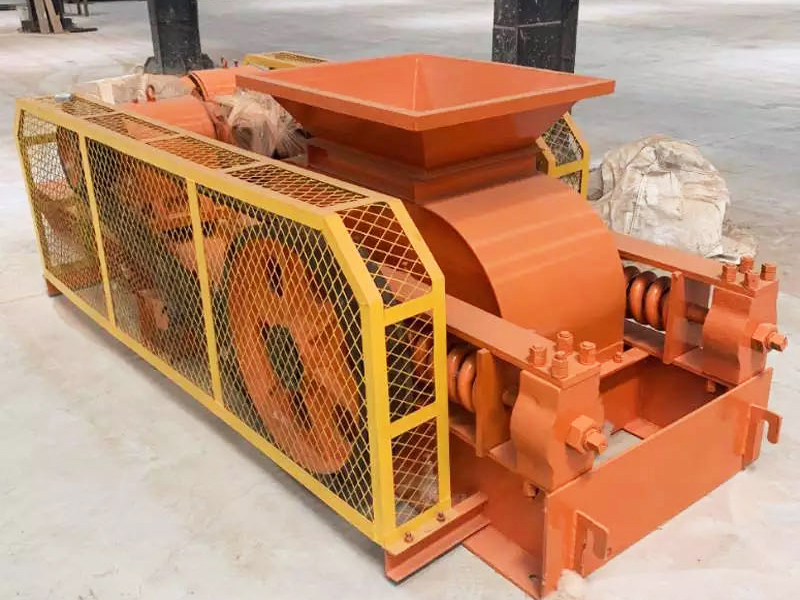

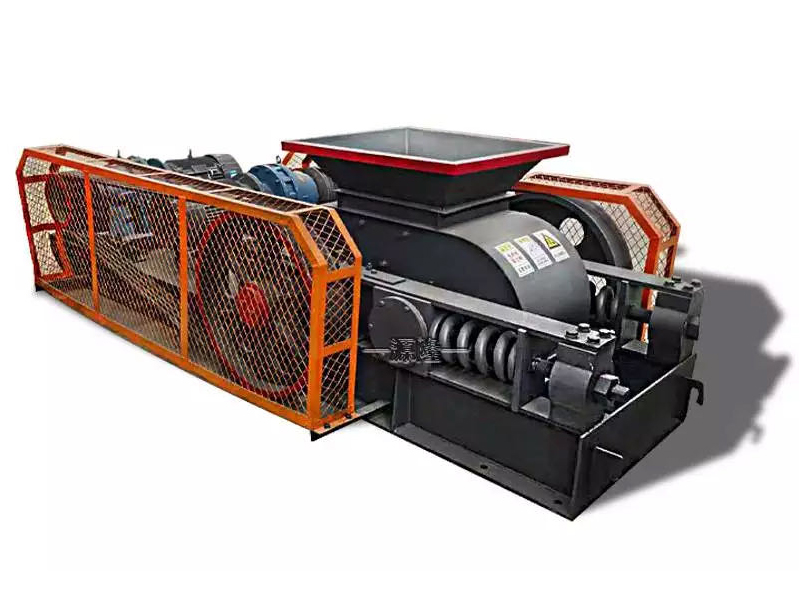

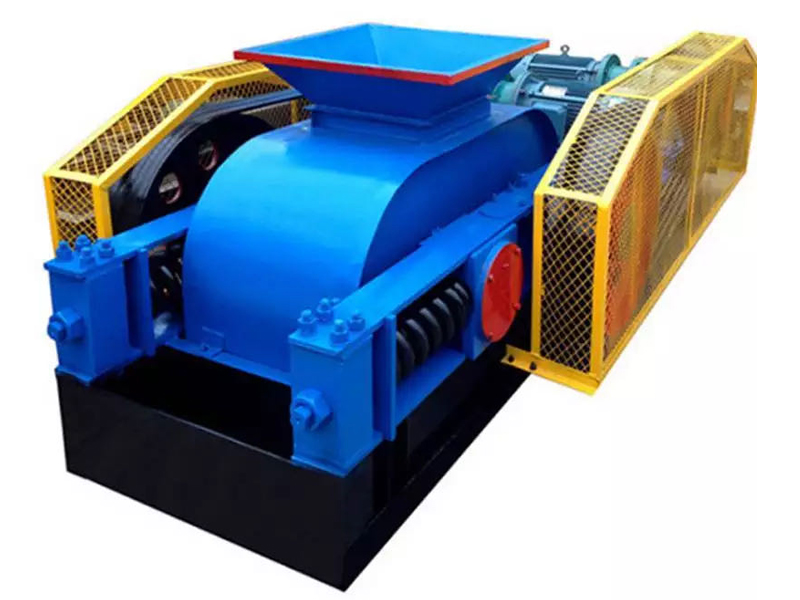

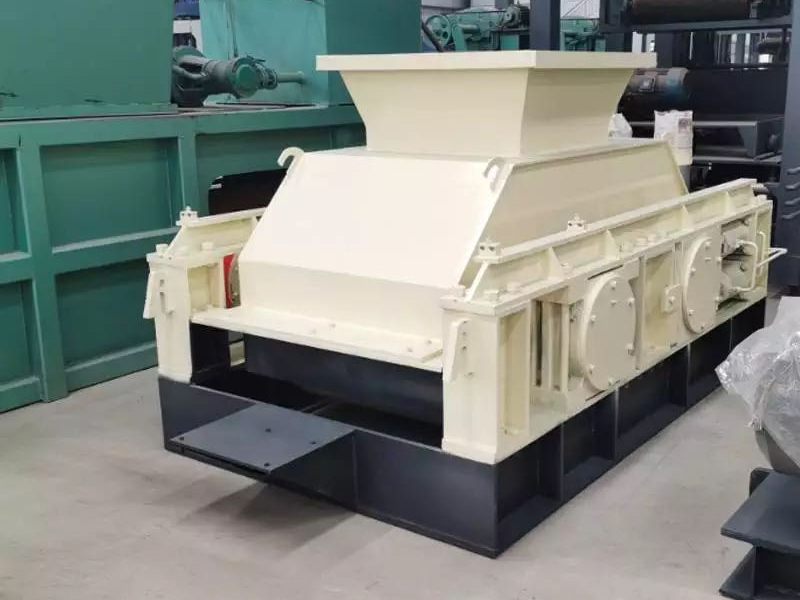

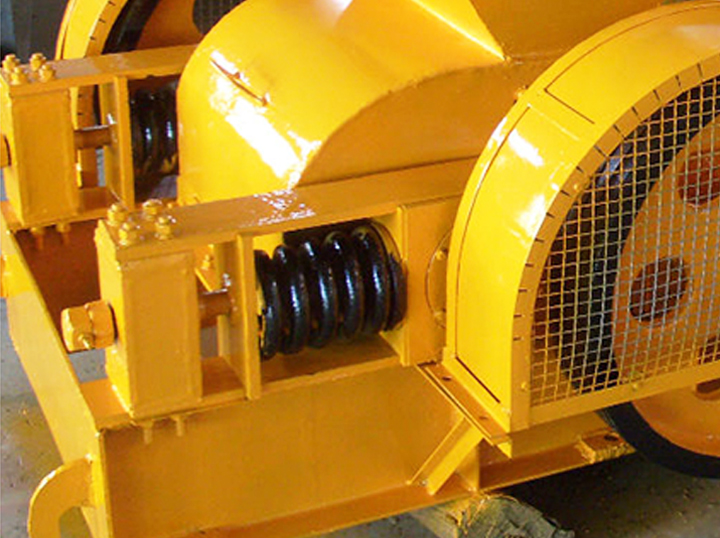

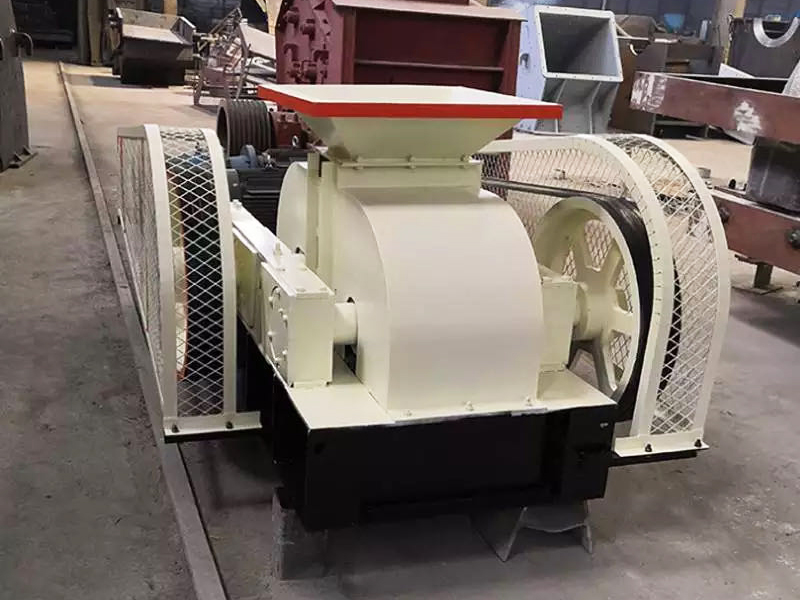

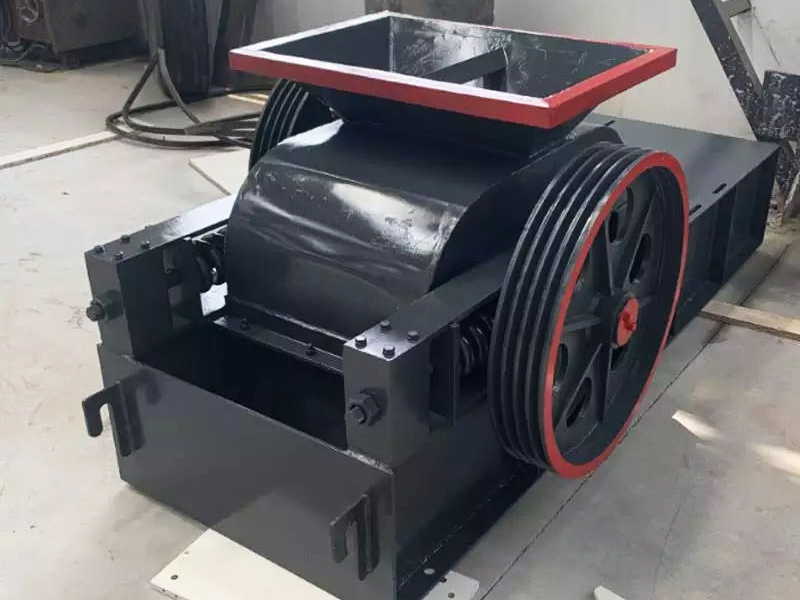

Roller Crusher Machine

Roller crushing machine is mainly used to crush carbon and activated carbon, because roll crushing involves two iron cylindrical shapes rotating and squeezing raw materials simultaneously, which does

Online Inquiry

Description

Roller crushing machine is mainly used to crush carbon and activated carbon, because roll crushing involves two iron cylindrical shapes rotating and squeezing raw materials simultaneously, which does not generate large dust and has good environmental protection effects. Traditional wood crushers are all high-speed, relying on hammers or blades to crush wooden raw materials. The speed is fast, there is a lot of dust, and the proportion of charcoal and activated carbon is light. When crushing, there is a lot of dust. Therefore, we use roller crushing machines in carbon making and activated carbon production lines.

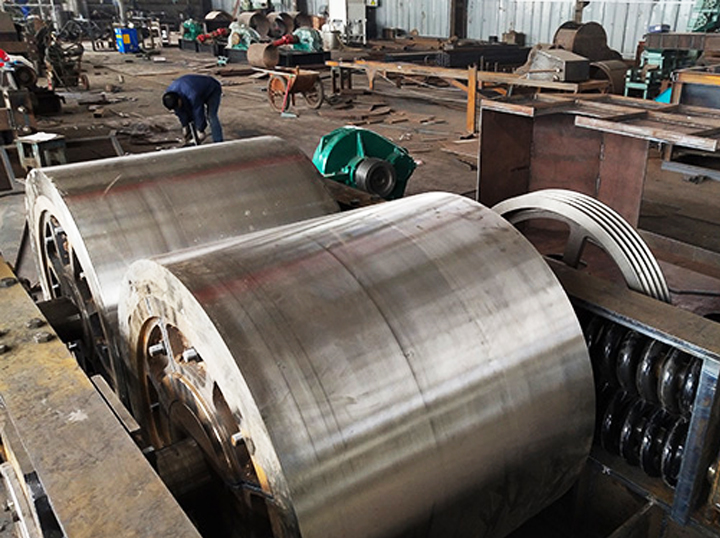

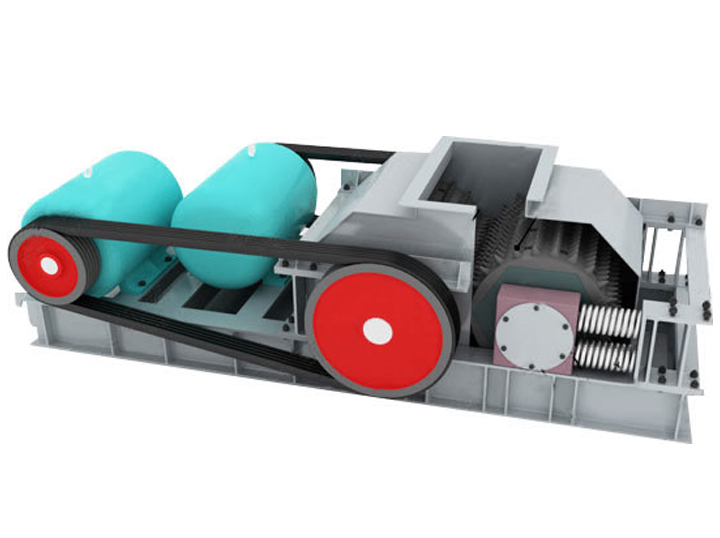

In terms of working principle, the twin roller crusher is composed of two extrusion rollers that rotate synchronously in opposite directions, one is a fixed roller and the other is a movable roller; The material is fed from above the two rollers and continuously brought into the roll space by the extrusion roller. After being subjected to a high pressure of 50-200MPa, it is discharged from the machine with an ideal particle size; From the moment the material is bitten by the roller surface, the force exerted by the roller gradually increases. The discharged material, except for a certain proportion of powdered material, generates a large number of cracks inside the other granular materials. In the further crushing process, it can greatly reduce the grinding energy consumption.
