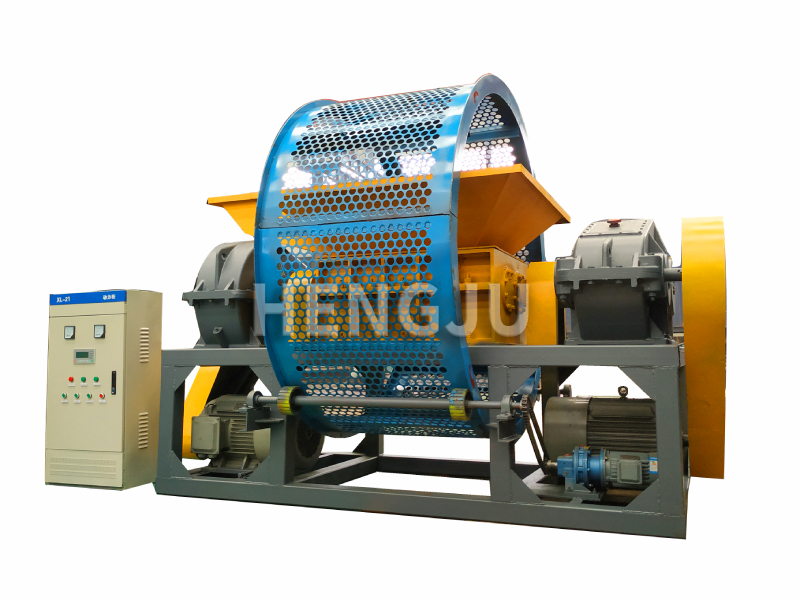

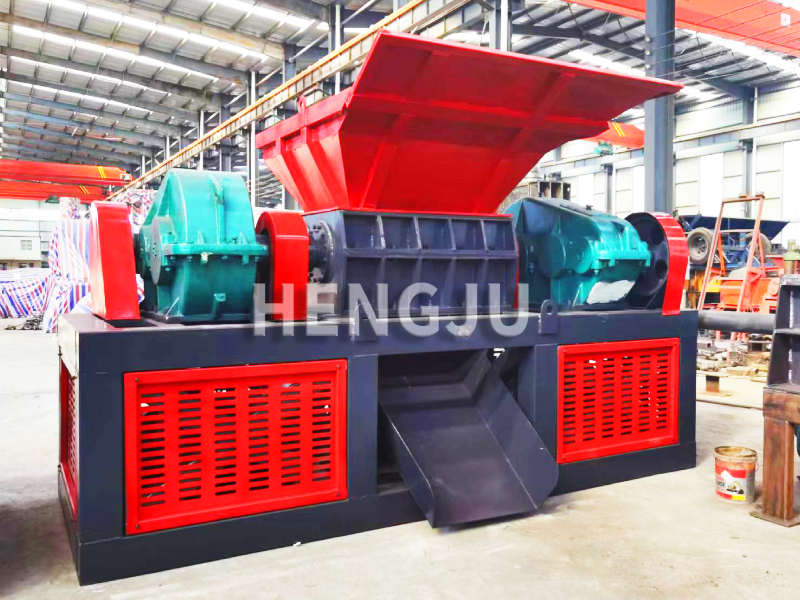

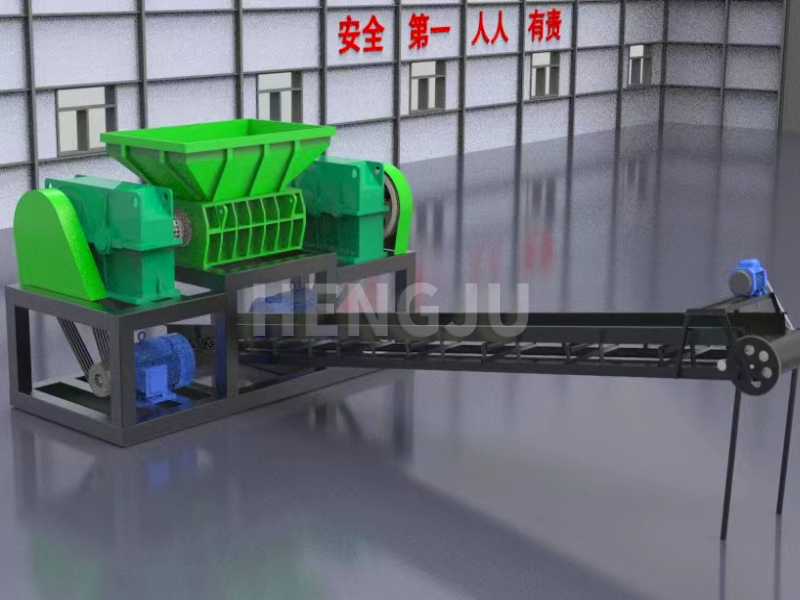

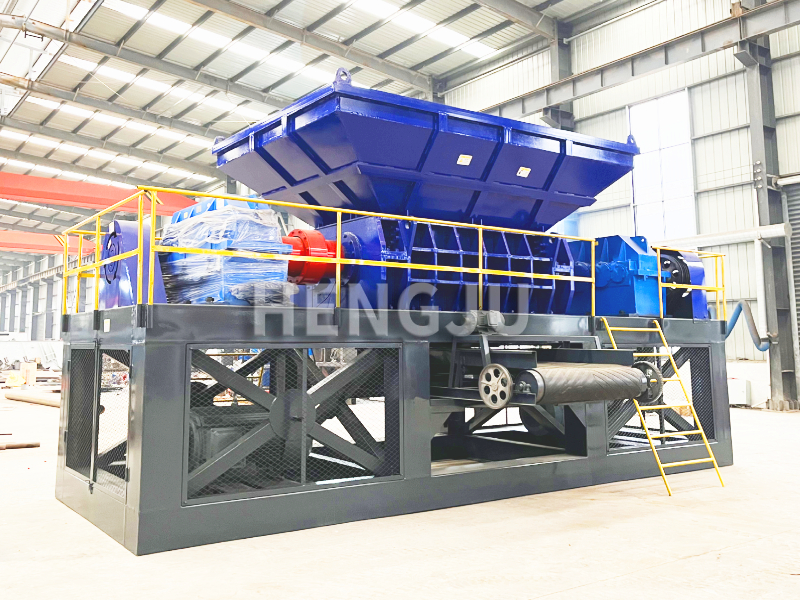

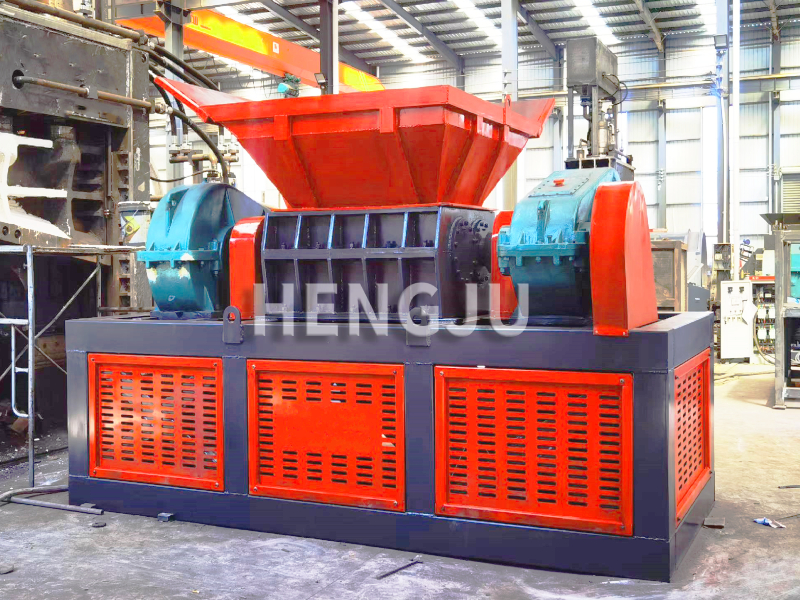

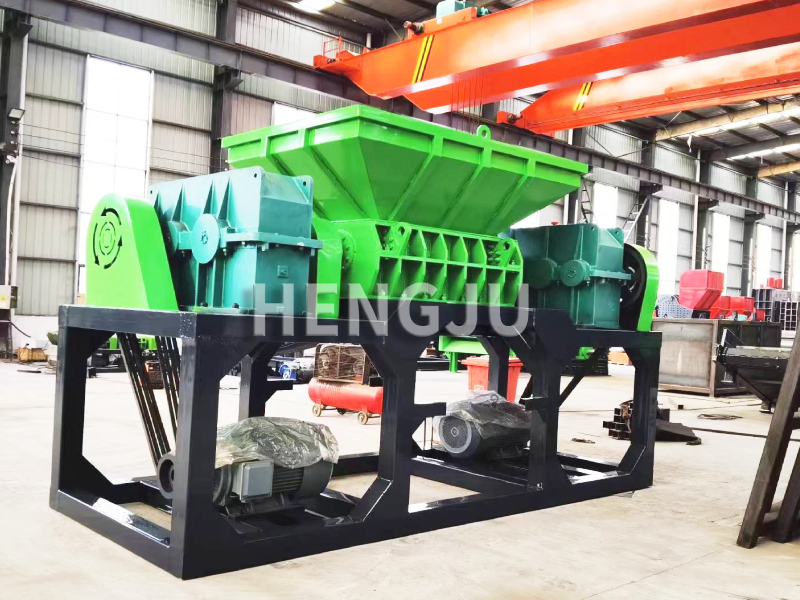

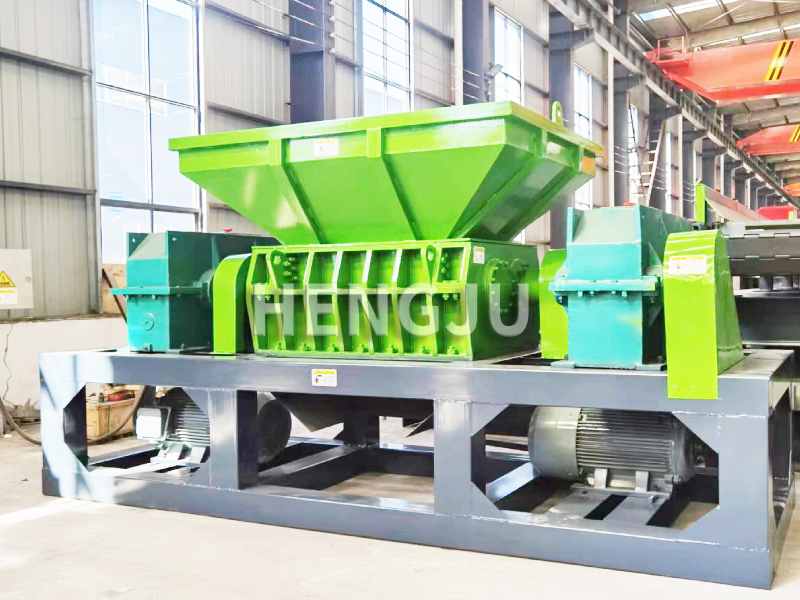

Double Shaft Shredder Machine
Material through the feeding system into the box, box bearing shredding blade, material after shredding blade tearing, extrusion, shearing and other comprehensive effects, shredding into small pieces of material, discharged from the box.
Hengju machinery production of single axis, double axis, four axis shredding machine is mainly used for industrial waste,electronic waste, household waste, waste plastic, scrap metal and other shredding processing, so as to achieve the purpose of secondary recycling.
Hengju mechanical shredding machine product characteristics:
1. The blade is made of alloy steel, long service life.
2. The frame is firm and can resist high torque.
3. Microcomputer (PLC) automatic control, with set start, stop, reverse and automatic reverse control functions.
4. The equipment has low speed, torque, low noise, can meet the environmental standards.
5. Easy to adjust, low maintenance cost, economic and durable.
6. The thickness of the tool and the number of teeth can be replaced according to different materials.
| Model | Spindle power(KW) | Spindle speed(r/min) | Conveyor power(KW) | Number of knife dish(slice) | Bin size(m) | Weight(t) |
|---|---|---|---|---|---|---|
| 2600 | 4-160*2 | 16-25 | 4-3KW | 83 | 3.2*2 | 36 |
| 2200 | 4-110*2 | 16-25 | 4-3KW | 73 | 2.5*1.8 | 28 |
| 1900 | 4-90*2 | 14-25 | 4-3KW | 63 | 2.3*2 | 22 |
| 1600 | 4-75*2 | 14-25 | 4-3KW | 53 | 2.6*2 | 14 |
| 1400 | 4-45*2 | 14-35 | 4-3KW | 46 | 2*20 | 12 |
| 1200 | 4-37*2 | 18-35 | / | 40 | 1.4*1 | 6 |
| 1000 | 4-30*2 | 18-35 | / | 33 | 1.2*1 | 5 |
| 800 | 4-18.5*2 | 18-35 | / | 28 | 0.9*1 | 3 |
| 600 | 4-15*2 | 18-20 | / | 20 | 0.82*0.9 | 2.5 |
| 400 | 4-7.5*2 | 18-20 | / | 20 | 0.65*0.6 | 1.5 |

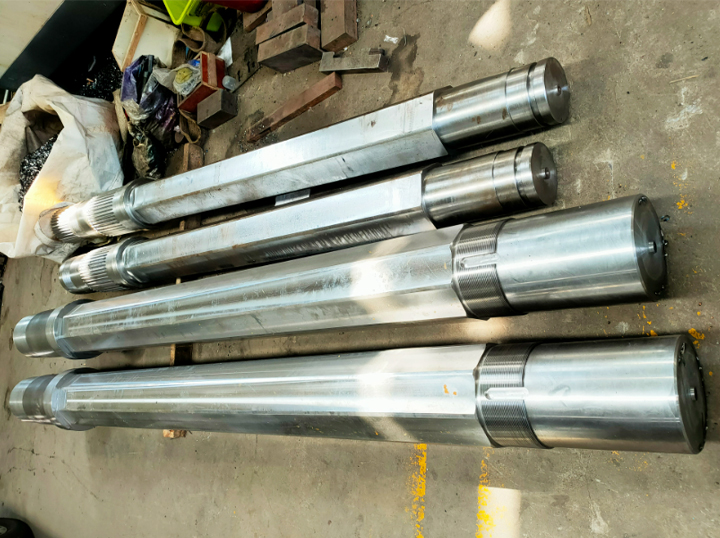

Shredder shaft
It can meet the waste recycling requirements of various industries.

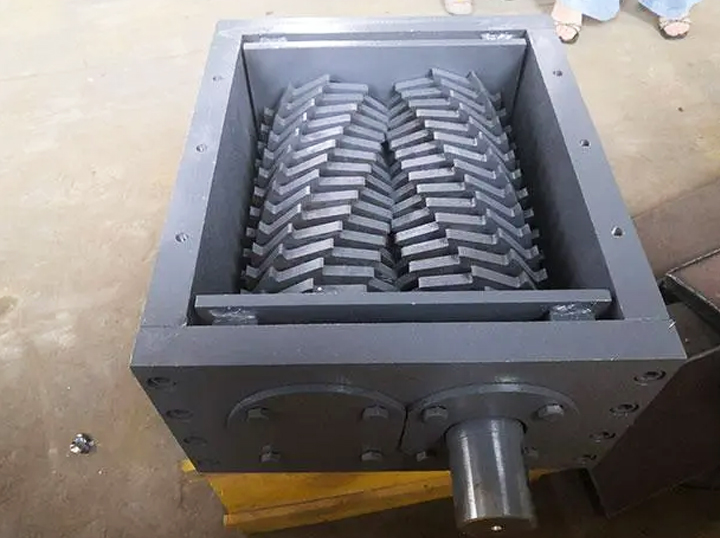

Shredder compartment
Materials that do not meet the requirements are strictly prohibited from entering the crushing silo.

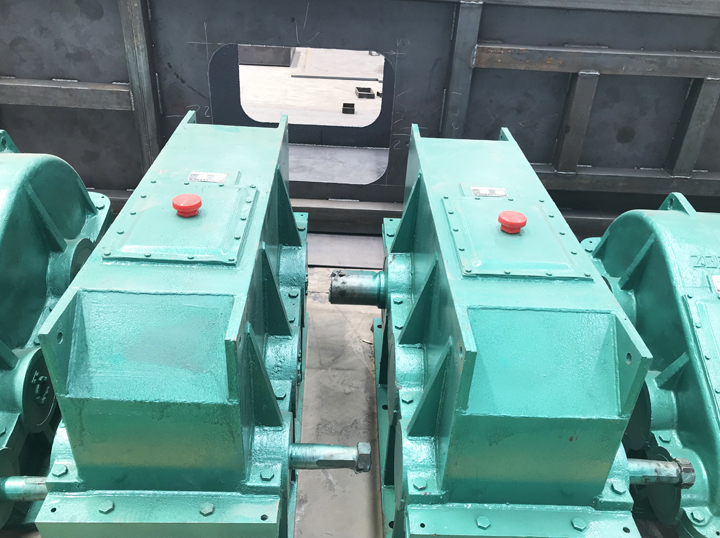

Shredder reducer
Driven by a gearbox, it has the characteristics of low speed, high torque, and low noise.
-
