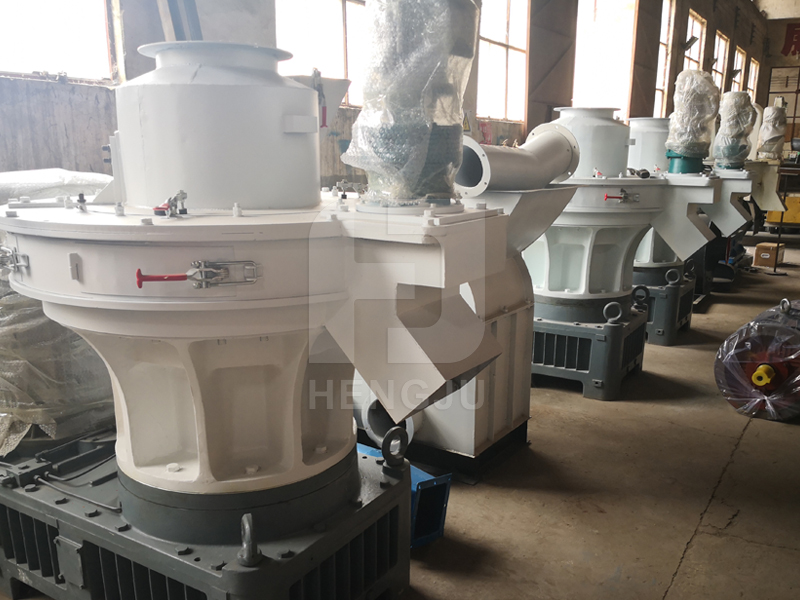

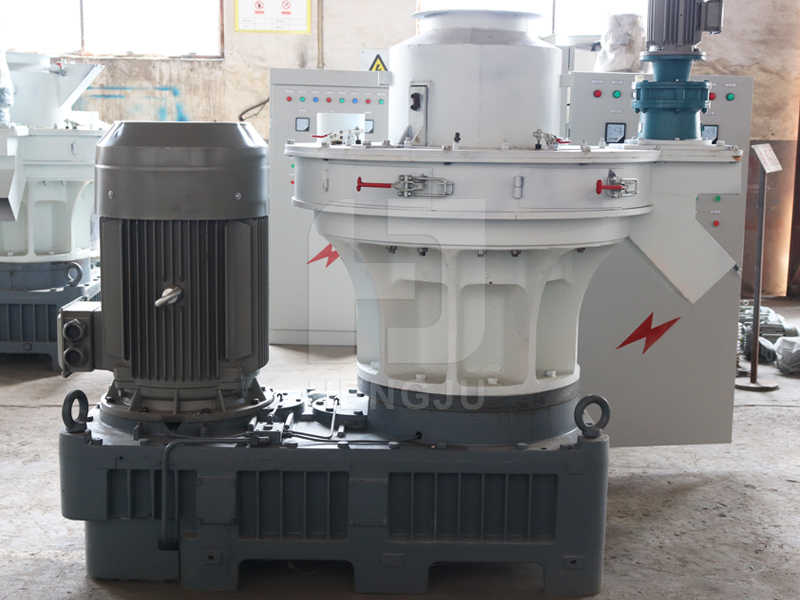

Biomass Pellet Production Line
Pellet wood machine available raw materials: Wood log, Wood chips, sawdust, Palm fiber and EFB , Rice husk ,Straw,Palm kernel shell.
Biomass circular model pellet machine is the use of crops corn stalk, wheat straw, straw, peanut shell, corn cob, cotton stem, soybean stem, rice husk, weeds, branches, leaves, sawdust, bark and other solid waste as raw materials, after crushing, pressure, compaction, molding, made of small sticks of solid pellet fuel.Pellet fuel is made of wood chips and straw by roller and ring molding at room temperature.The density of raw materials is generally around 0.6-0.8, and the particle density after molding is greater than 1.1, which is very convenient for transportation and storage. At the same time, its combustion performance has been greatly improved.
| Model | Motor power(kw) | Main blade rotation diameter(mm) | Main blade rotation diameter(mm | Main blade quantity(pcs) | External dimensions(mm) | Equipment weight(kg) |
|---|---|---|---|---|---|---|
| SYU1530 | 1.5KW | 18.5mm | φ200mm | 14 | 850x560x1550mm | 500kg |
| SYU1940 | 7.7KW | 18.5mm | φ245mm | 20 | 1860x900x1800mm | 1400kg |
| SYU1960 | 2X7.5KW | 18.5mm | φ245mm | 30 | 1950x900x1800mm | 1600kg |
| SYU1980 | 2X11KW | 18.5mm | φ245mm | 42 | 2180x900x1800mm | 1800kg |
| SYU2360 | 18.5KW | 25mm | φ290mm | 24 | 2300x1000x1950mm | 3000kg |
| SYU2380 | 22KW | 25mm | φ290mm | 32 | 2500x1000x1950mm | 3500kg |
| SYU23100 | 22KW | 25mm | φ290mm | 40 | 2700x1000x1950mm | 4000kg |
| SYU2680 | 18.5KW | 40mm | φ320mm | 20 | 2410x1100x2050mm | 4200kg |
| SYU26100 | 22KW | 40mm | φ320mm | 25 | 2810x1100x2050mm | 4600kg |
| SYU26120 | 22kw | 40mm | φ320mm | 30 | 3010x1100x2050mm | 5000kg |
| SYU3380 | 2x22KW | 50mm | φ430mm | 16 | 3000x1250x2150mm | 4700kg |
| SYU33100 | 2x30KW | 50mm | φ430mm | 20 | 3000x1250x2150mm | 5200kg |
| SYU33120 | 2x30KW | 50mm | φ430mm | 24 | 3000x1250x2150mm | 5700kg |
| SYU41100 | 2x30KW | 50mm | φ534mm | 20 | 3660x1700x2650mm | 9000kg |
| SYU41140 | 2x37KW | 50mm | φ534mm | 28 | 3660x1700x2650mm | 10000kg |
| SYU41160 | 2x45KW | 50mm | φ534mm | 32 | 3660x1700x2650mm | 11000kg |
| SYU50130 | 2x55KW | 50mm | φ650mm | 32 | 4200x2100x3000mm | 13000kg |
| SYU50180 | 2x55KW | 50mm | φ650mm | 36 | 4200x2100x3000mm | 14000kg |
| SYU50180 | 2x75KW | 75mm | φ800mm | 24 | 5400x2400x3700mm | 20000kg |
| SYU61210 | 2x90KW | 100mm | φ800mm | 21 | 5400x2400x3700mm | 23000kg |
| SYU80210 | 2x225KW | 150mm | φ980mm | 14 | 7100x2900x4200mm | 26000kg |
| SYU80250 | 2x225KW | 150mmφ980mm | φ980mm | 17 | 7100x2900x4200mm | 29000kg |
| SYU80300 | 2x225KW | 150mm | φ980mm | 20 | 7100x2900x4200mm | 32000kg |
-
