Description

Rotary Dryer Machine Features：

1. Rational internal structure, high efficiency and remarkable energy - saving,According to our inspecting result , the heat efficiency is about 85% more than traditional dryer.

2. Cylinder self- insulation thermal efficiency can reach to above 70% (traditional single cylinder dryer heat efficiency is only 35%), so it can improve thermal efficiency at least 35%.

3. Covers an area of 50% lower than single drum dryer, and civil work investment can reduce 50%,power consumption reduced by 40%. In addition, The external cylinder has higher heat preservation and heat insulation effect, so outer tube surface temperature is near to room temperature, it will not only keeps high heat energy utilizing efficiency , but also can improve the working environment and conditions.

4. It can easily adjust the final moisture according to client’s requirement.

5. Low outlet temperature and long service time of dust collection system to keep clean working environment.

Technical parameter

Model	Output（t/h）	Weight	Coal consumption	Main motor power（kw）	Induced draft fan power（kw）
0.6*6	0.18	2.0	10-20	3	3
0.8*8	0.28	2.4	10-20	4	4
1.0*8	0.6	4.5	15-25	5.5	5.5
1.0*12	0.76	5.7	15-25	7.5	5.5
1.2*10	0.78	9.0	15-25	11	7.5
1.2*12	1.0	10.0	20-30	11	7.5
1.5*12	1.6	14.0	20-30	11	7.5
1.5*16	1.6	16.6	25-35	15	11
1.8*14	2.4	23.0	40-50	18.5	15

Product Details

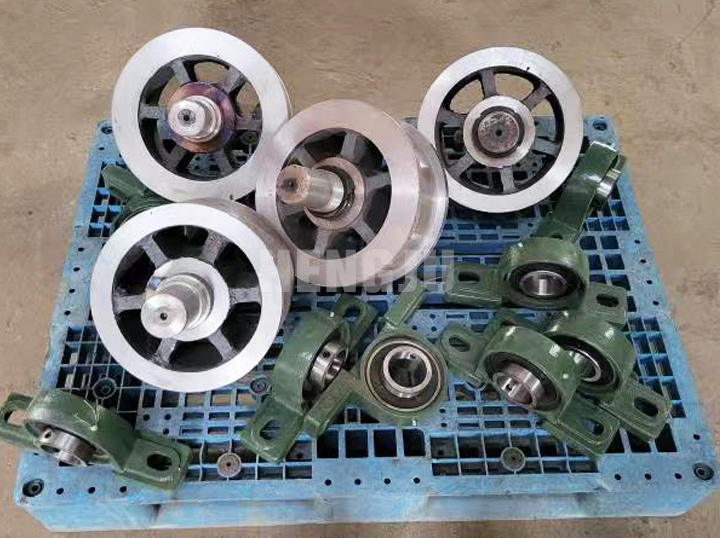

Idler parts
Mainly including roller stamping bearing seat, roller bearing, and roller sealing.

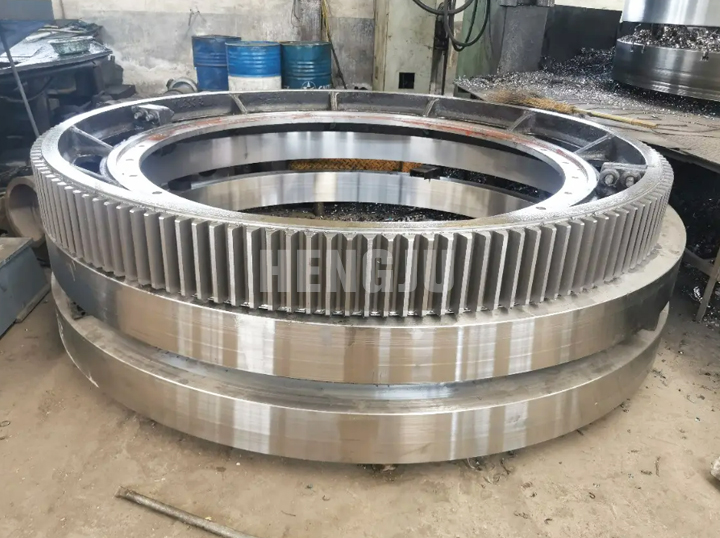

Rotating gear
The gear is an important component to ensure the normal rotation of the dryer.

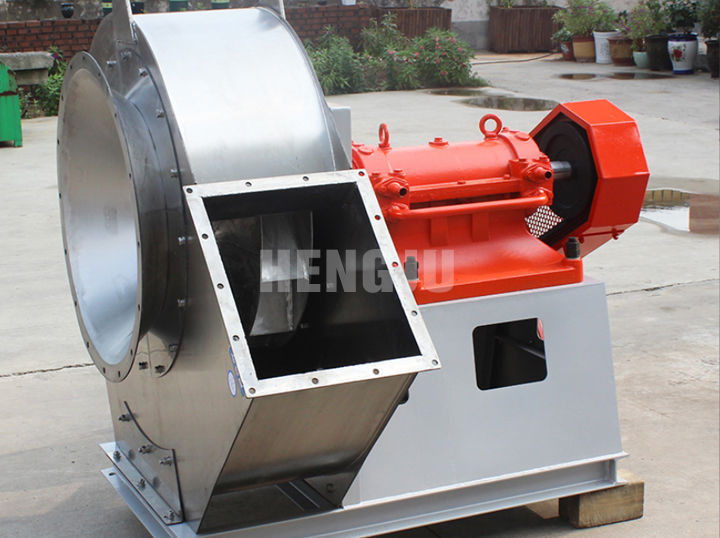

Strong induced draft fan
The function of the induced draft fan is to exhaust the high-temperature flue gas generated by boiler combustion, maintain furnace pressure, and form flowing flue gas.
