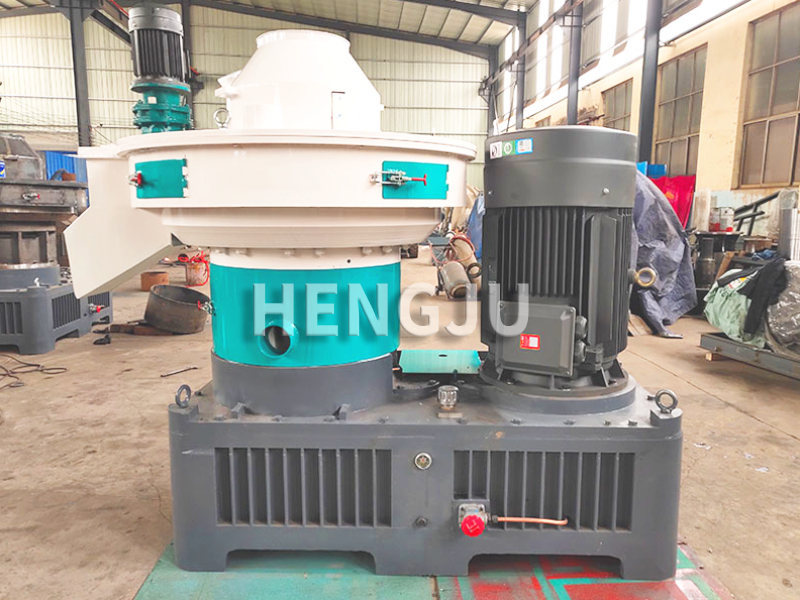

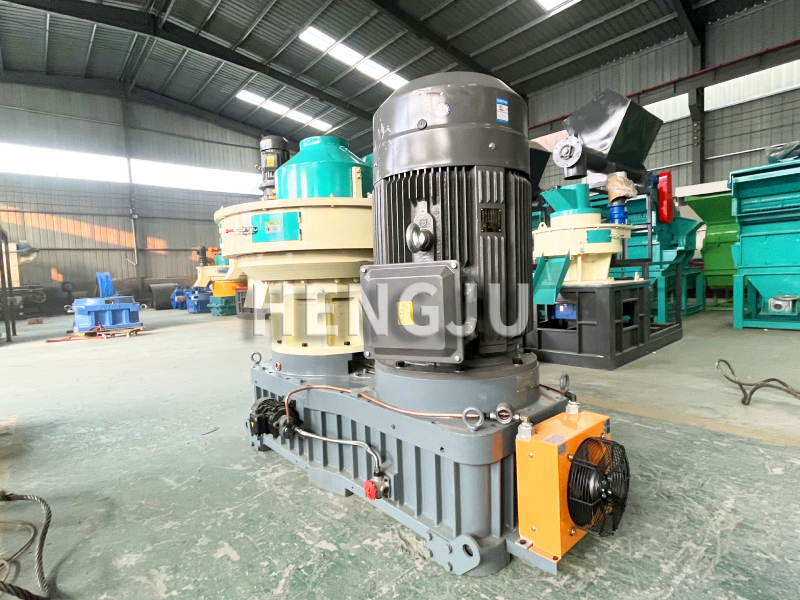

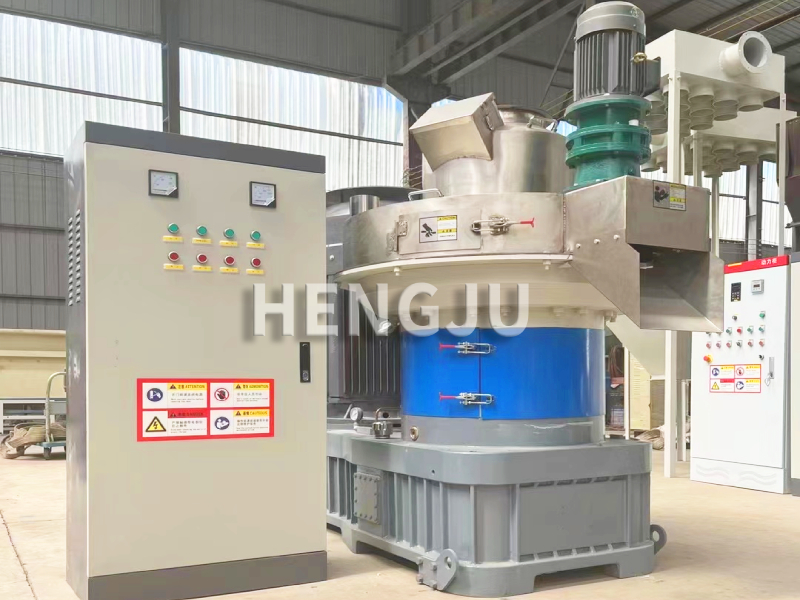

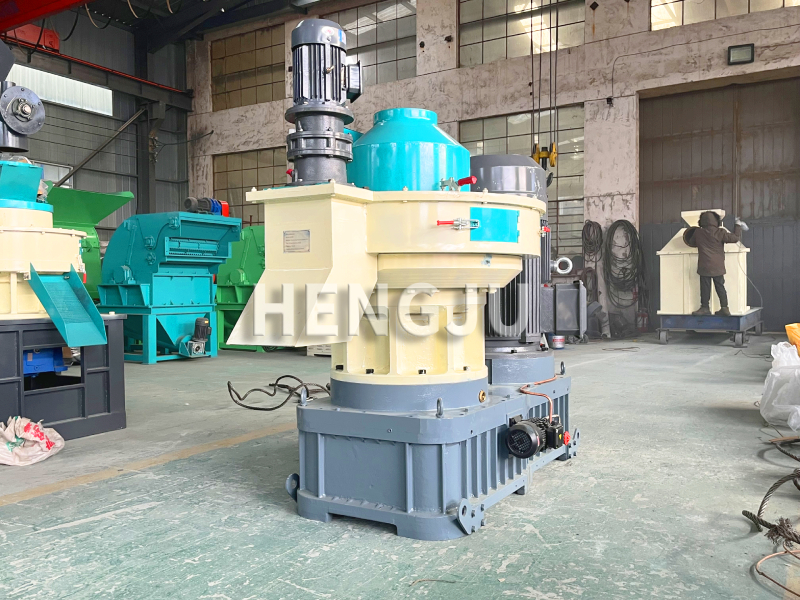

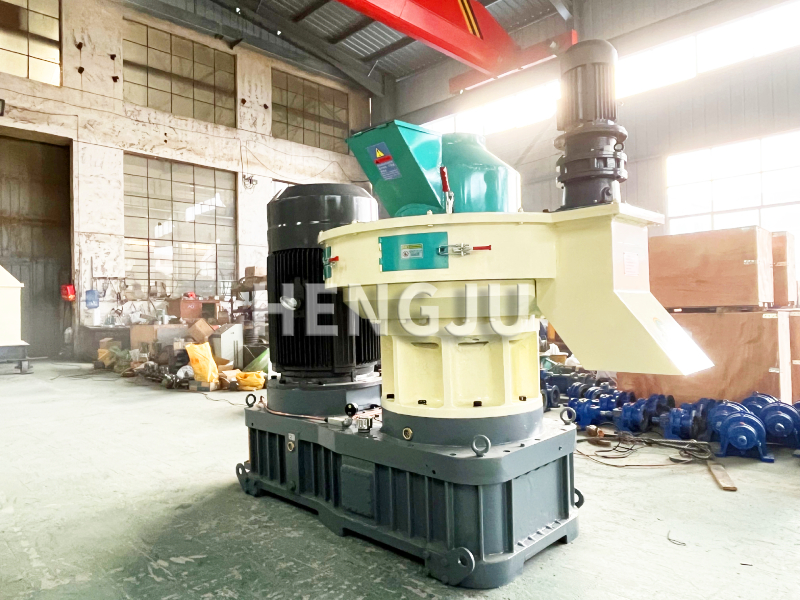

Biomass Granulator Machine
Our pellet machine is the first set of products in China carefully developed by my unit . heart parts for"second mould"assembly structure is unique; “pressure wheel”with high alloy wear-resistant materials and refined, the life of wearing parts is several times than similar products: automatic transmission oil filtering, lubrication in place.
Advantage points of wood pellet machine：
1.Ring die, vertical structure, conducive to the pelletizing room cooling
2.Die static, rollers rotating, materials centrifugal, evenly distributed around
3.Wood pellet mill can press 6-12mm pellets diameter,if you need different pellets diameter,just change the different ring die is
ok.
4.Pellet mill power supply is 380v,50hz,3phases,we also can design the special motor for you,like 220v,415v,60hz,3phases.
| Model | Capacity (t/h) | Motor Power (Kw) | Specifications (mm) | Weight (t) | Dimension (mm) |
|---|---|---|---|---|---|
| HJ450 | Crude fiber 0.8-1.2 | 55 | 4-12 | 3.8 | 2050*850*1750 |
| HJ550 | Crude fiber 1-1.5 | 75 | 4-12 | 6.1 | 2630*1000*240 |
| HJ850 | Crude fiber 1.8-2.5 | 90 | 4-12 | 7.8 | 2800*1300*2500 |
| HJ980 | Crude fiber 3-5 | 160 | 4-12 | 9.8 | 3300*1400*3100 |

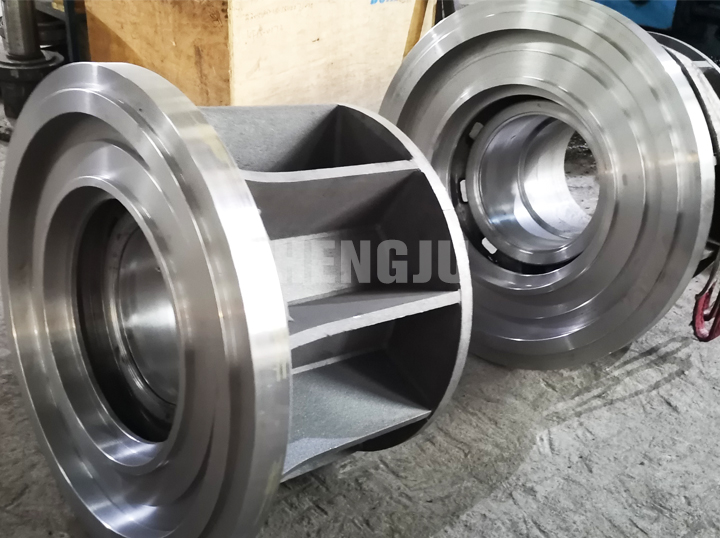

Customizable granulation molds
We can customize molds with different raw materials according to customer requirements.
Widely used in various fields
Used in biomass fuel plant, power plants, wood processing plants, fertilizer plants,chemical plants.
Pellet wood machine available raw materials
Wood log, Wood chips, sawdust, Palm fiber and EFB , Rice husk ,Straw,Palm kernel shell.
-
