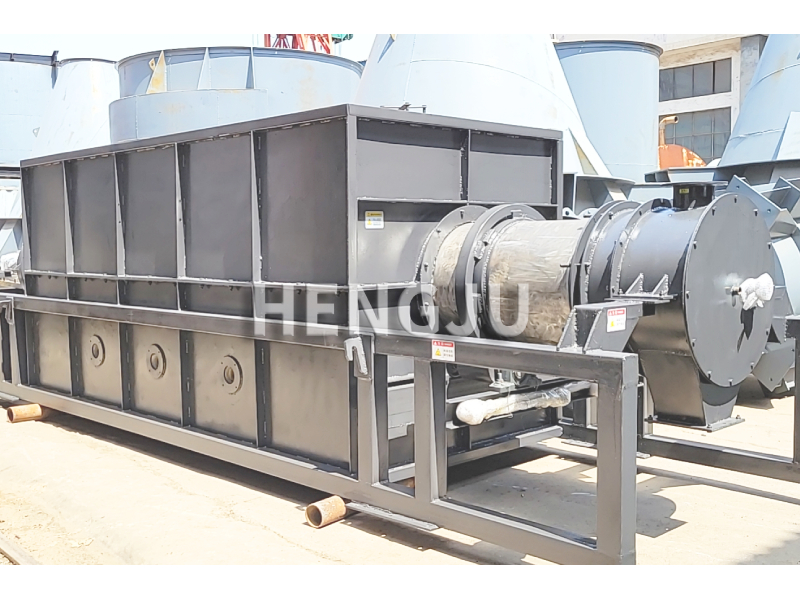

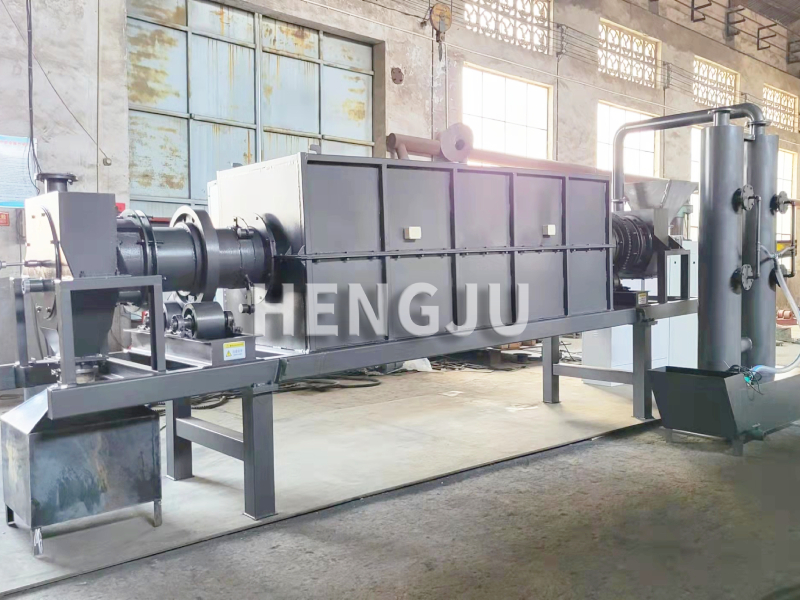

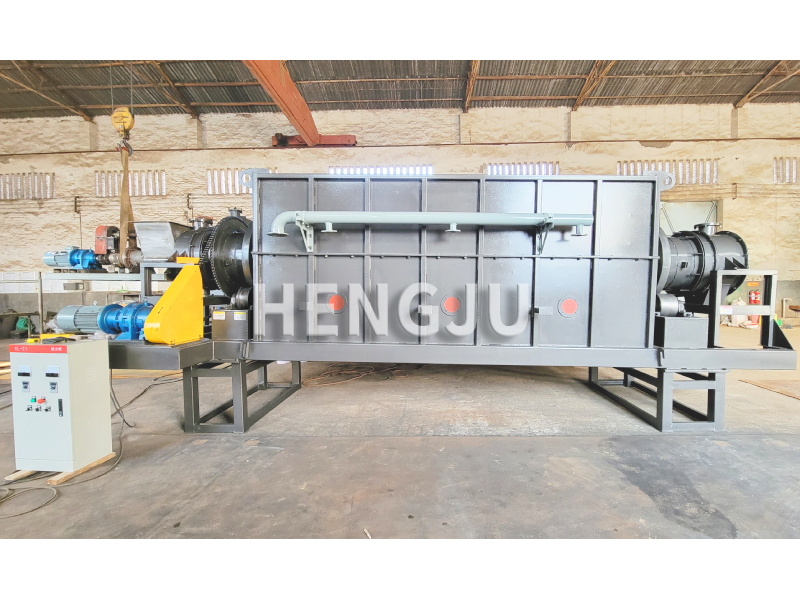

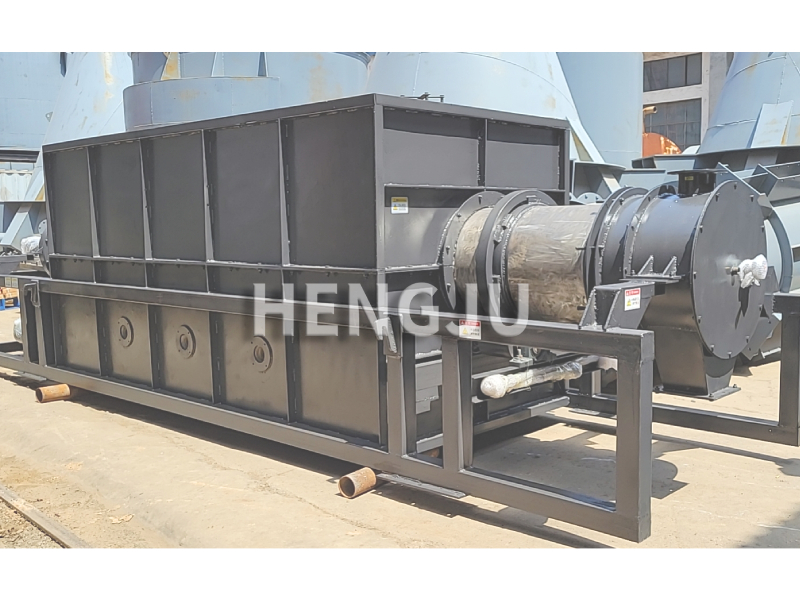

Pyrolysis Furnace
Pyrolysis is a method of burning, smelting, sintering and melting electronic wastes to remove plastics and other organic components and extract metals.
Main functions and characteristics of high-temperature pyrolysis rotary furnace:
1. Production mode: continuous
2. Maximum operating temperature: 1100 ℃
3. Furnace tube material: high temperature alloy stainless steel
4. Heater: electric wire or silicon carbide rod
5. Furnace material: alumina fiber+aluminum silicate fiber, with good temperature resistance, energy saving and thermal insulation performance.
6. Temperature control mode: intelligent PID control, self setting function, phase shifting trigger, over temperature alarm, leakage protection and other operating functions.
7. Temperature control accuracy: ± 1 ℃
8. Temperature control curve: 30 temperature rise and fall programs can be preset to meet the requirements of different working conditions.
9. Rotating speed of furnace tube: variable frequency adjustable
10. Inclination of furnace body: 0~30 degrees, adjustable
| Model | Size（mm） | Furnace temperature ℃ | Processing capacity (kg/h) |
|---|---|---|---|
| HJ-RJ10 | 4000*1000mm | 400-1100 | 100-300 |
| HJ-RJ20 | 6000*1200mm | 400-1100 | 150-300 |
| HJ-RJ30 | 8000*1500mm | 400-1100 | 300-500 |
| HJ-RJ50 | 10000*1800mm | 400-1100 | 500-700 |

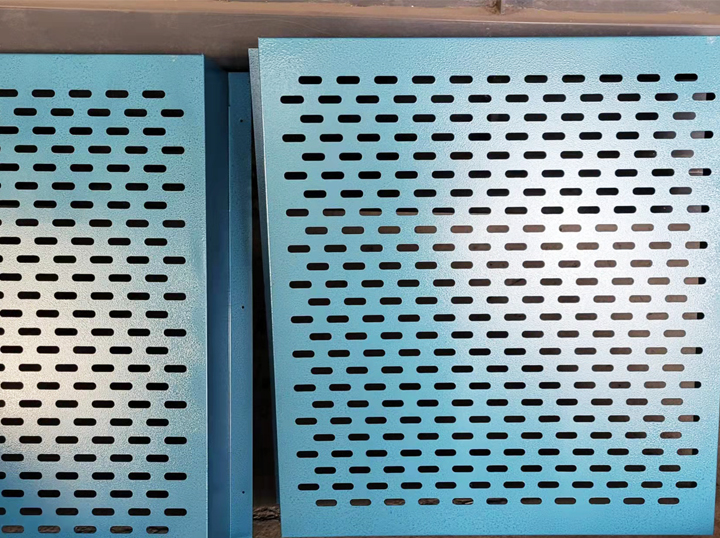

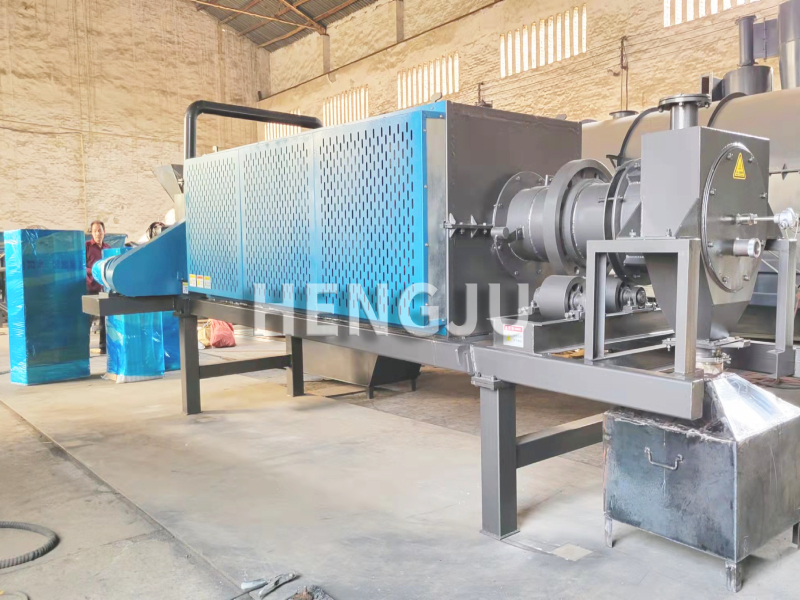

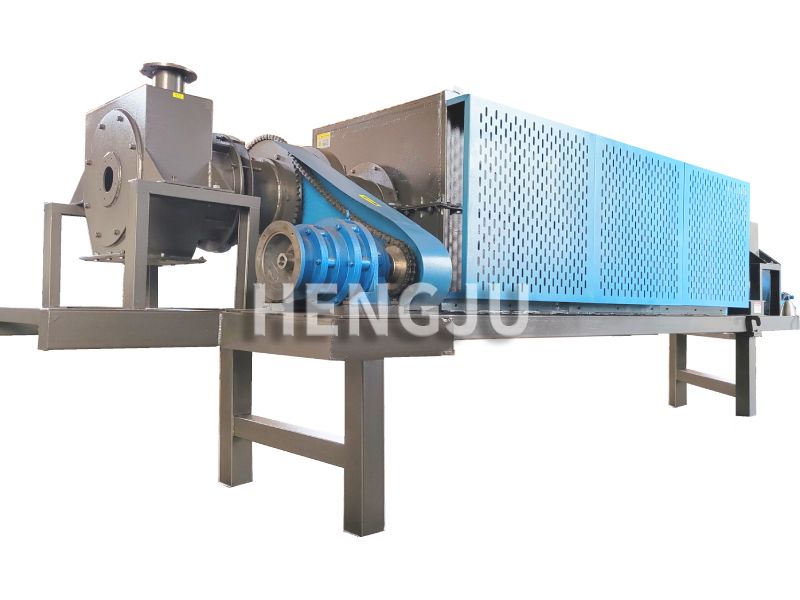

Laser cutting protective device
Safety protection to prevent workers from easily touching.

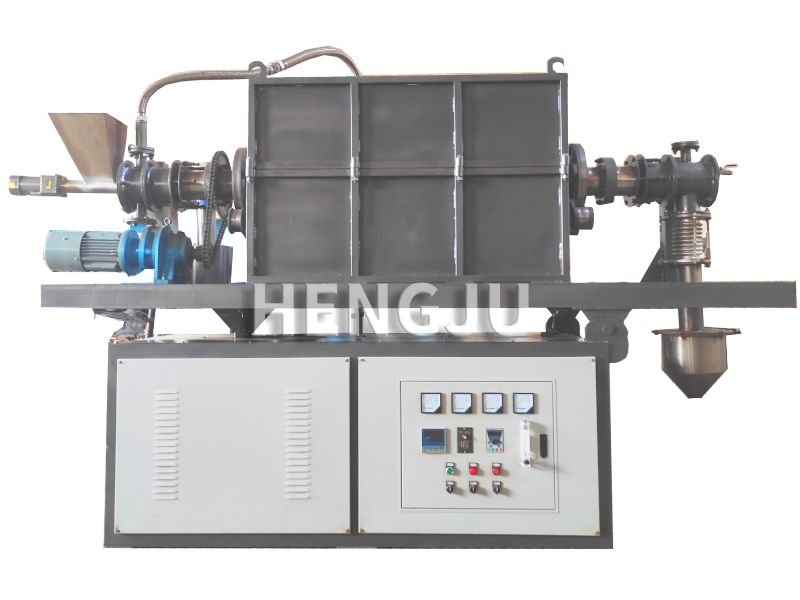

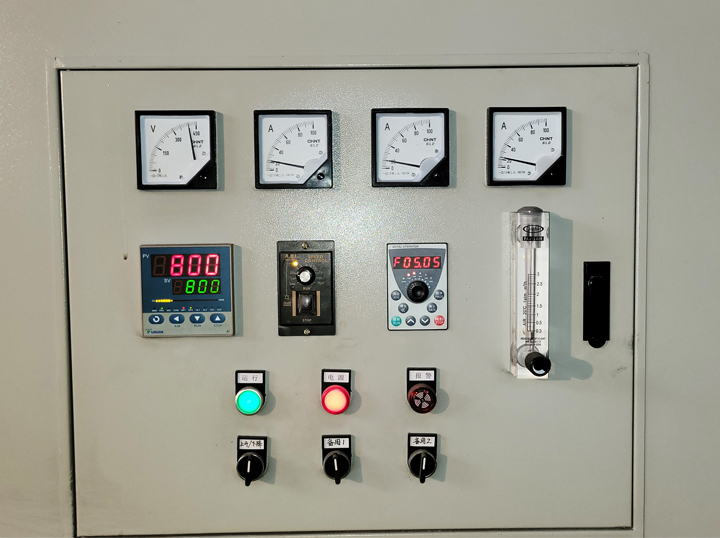

Fully automatic control cabinet
Temperature control display, pressure display.

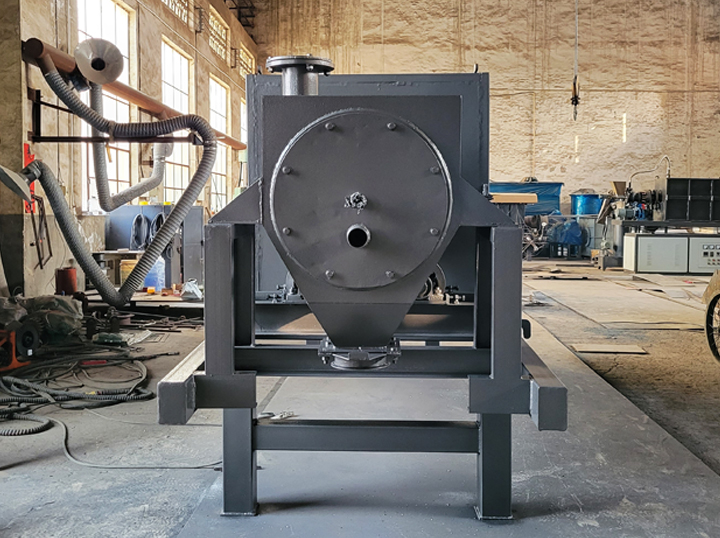

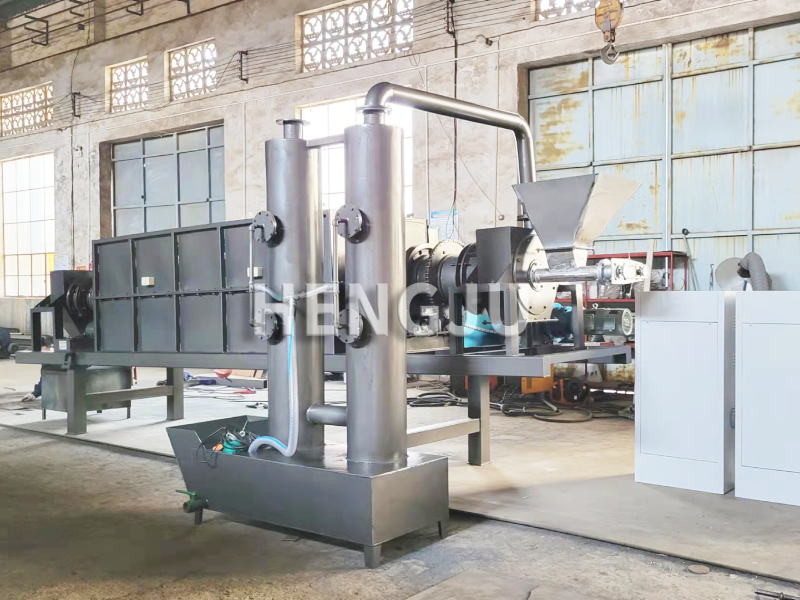

Self flow discharge port
The rotary furnace is equipped with a tilt angle to utilize gravity for low level discharge during the production process.
-
