Cooling Machine

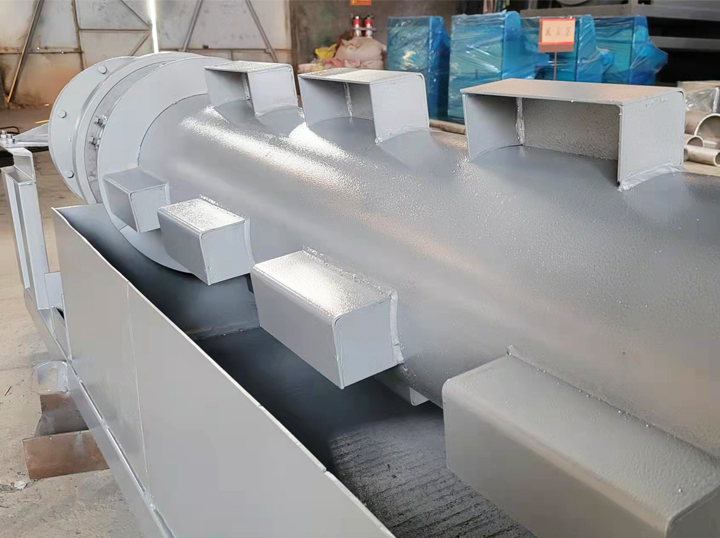

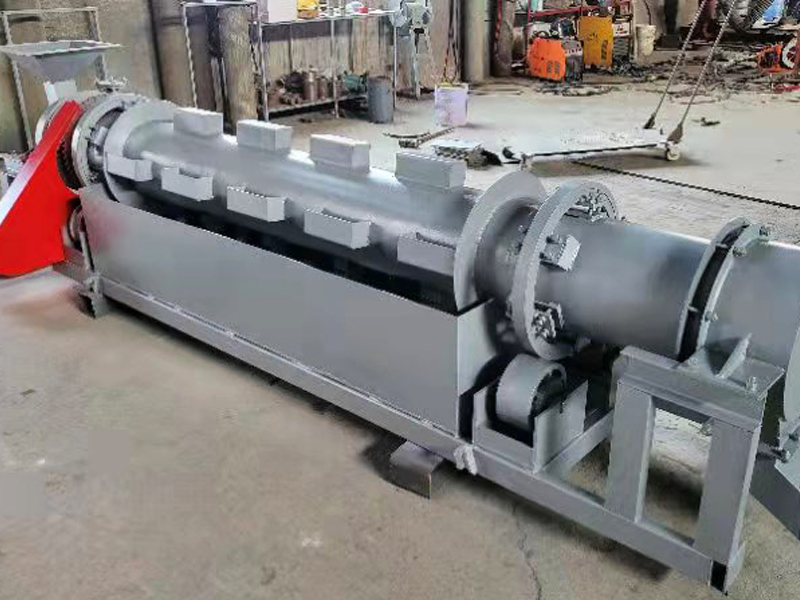

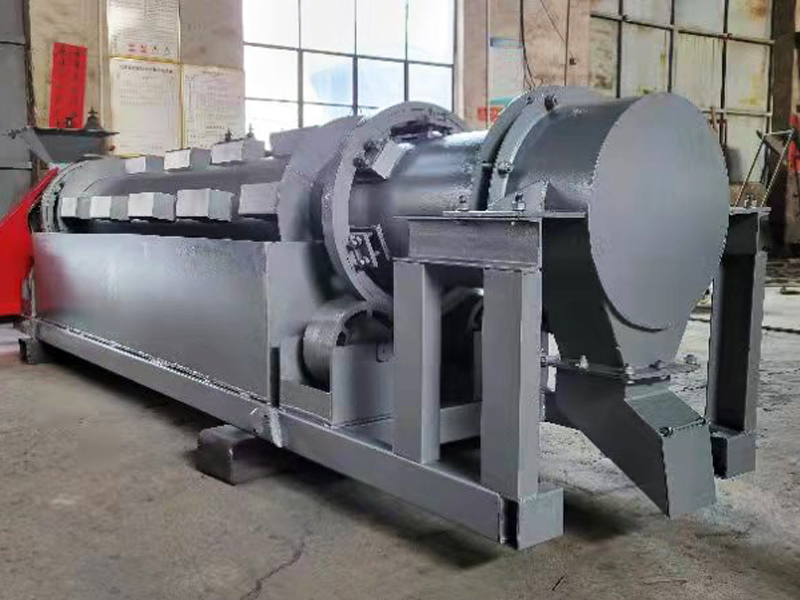

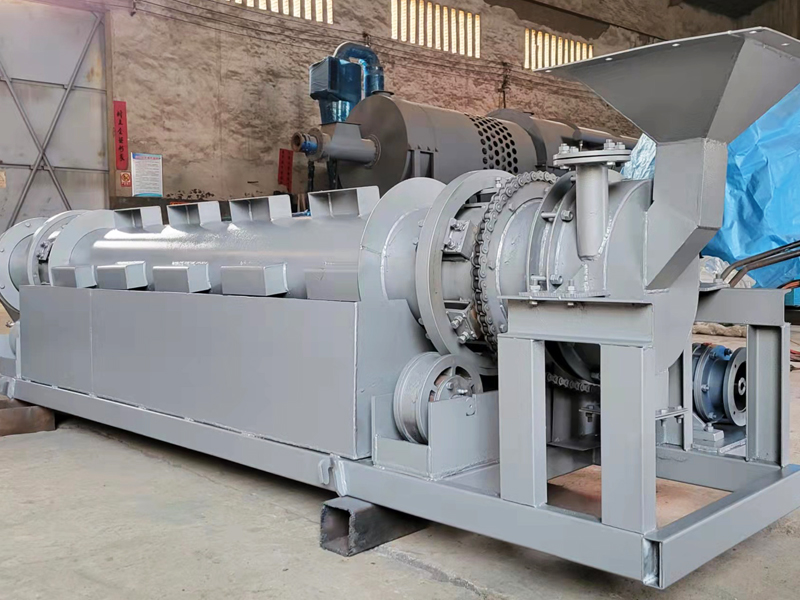

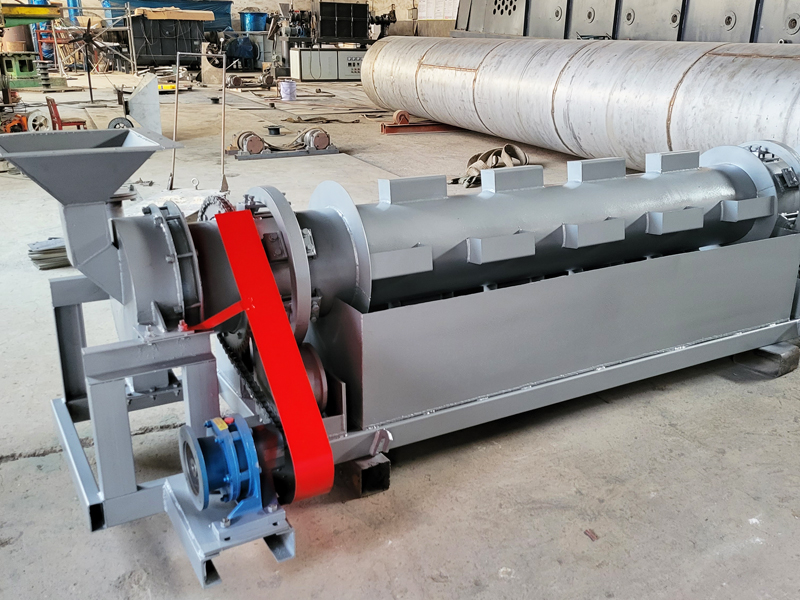

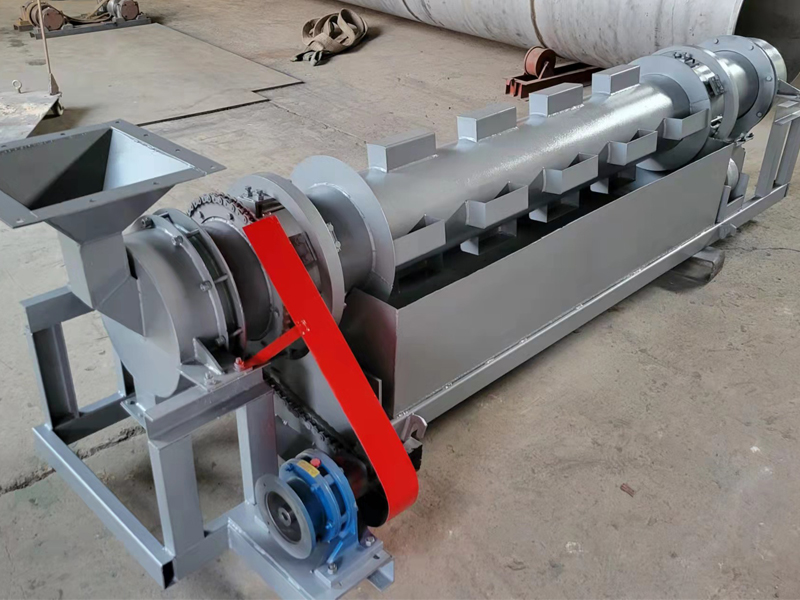

Rotary Drum Cooler adopts heating exchange method to cool materials. It is equipped with welded steel spiral scraping wings in front of the tube, lifting board at the end of the rotary body, and auxiliary piping system in the feed end of the cooling machine. The belt and pulley are driven by the main motor and through the reducer the drive shaft is put in motion.
Use dryer together can greatly improve the cooling rate, reduce labor intensity and improve the quality, further remove moisture, reduce the grain temperature of fertilizer.
At the same time, can also be used for cooling powder, other granules materials.
| Model | Motor power(kw) | Circulating water pump power(kw） | Weight | Size |
|---|---|---|---|---|
| HJ-1 | 3 | 0.15 | 500kg | 3000*750 |
| HJ-2 | 5.5 | 0.25 | 650kg | 4000*750 |
| HJ-3 | 7.5 | 0.5 | 1200kg | 6000*7050 |
| HJ-4 | 11 | 0.75 | 1800kg | 9000*1250 |

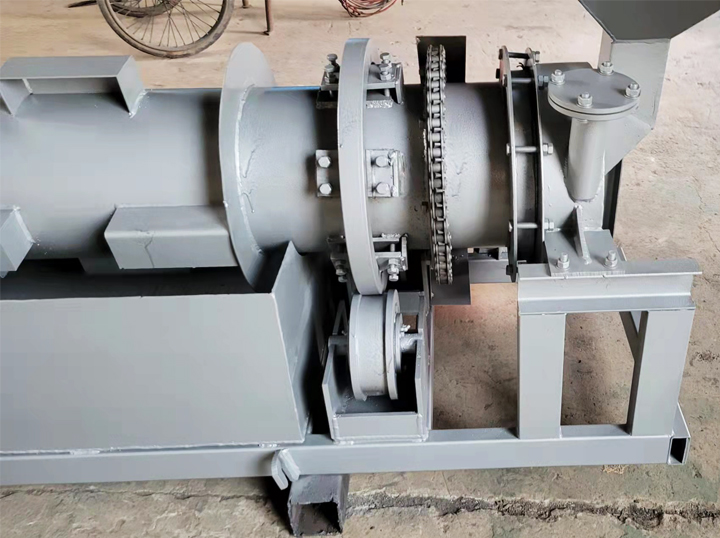

Rotating device
Managed rotating device, good stability and durability.
Water circulation device
Cooling machine automatic water replenishment circulation heating device.

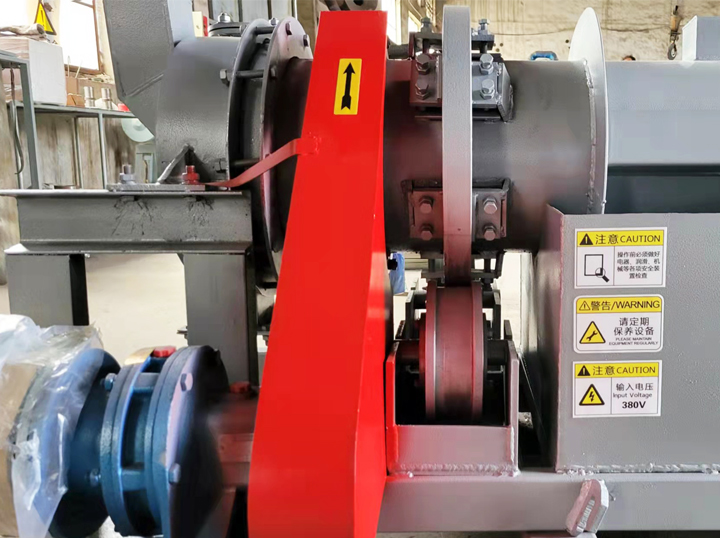

Chain protective cover
It can protect against hazards during the production process, ensuring safety and aesthetics.
-
