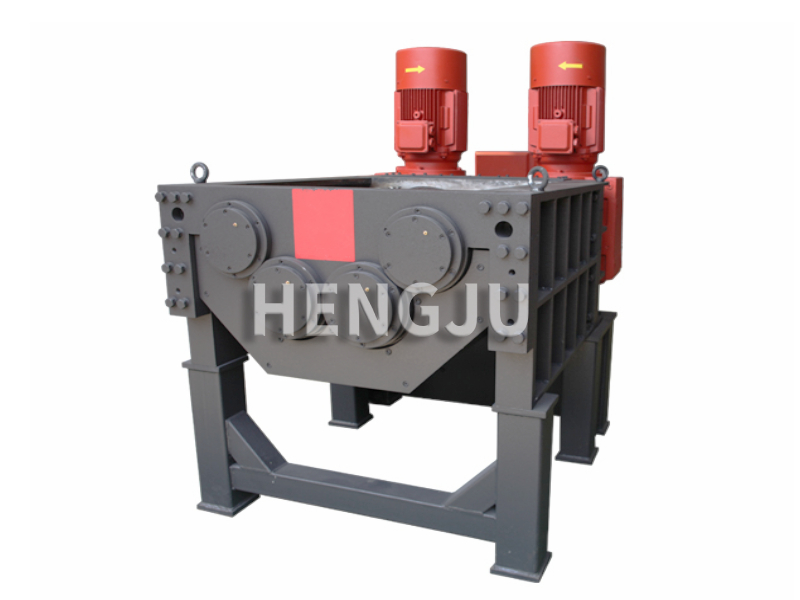

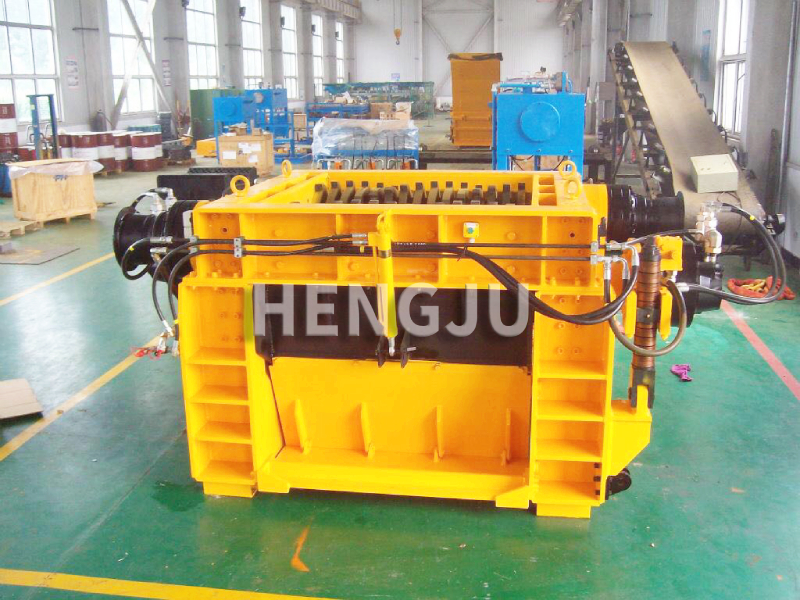

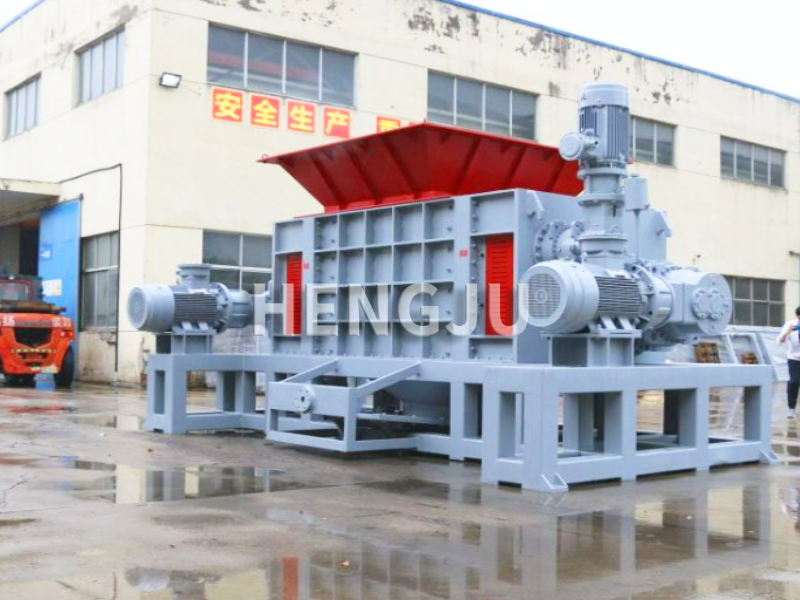

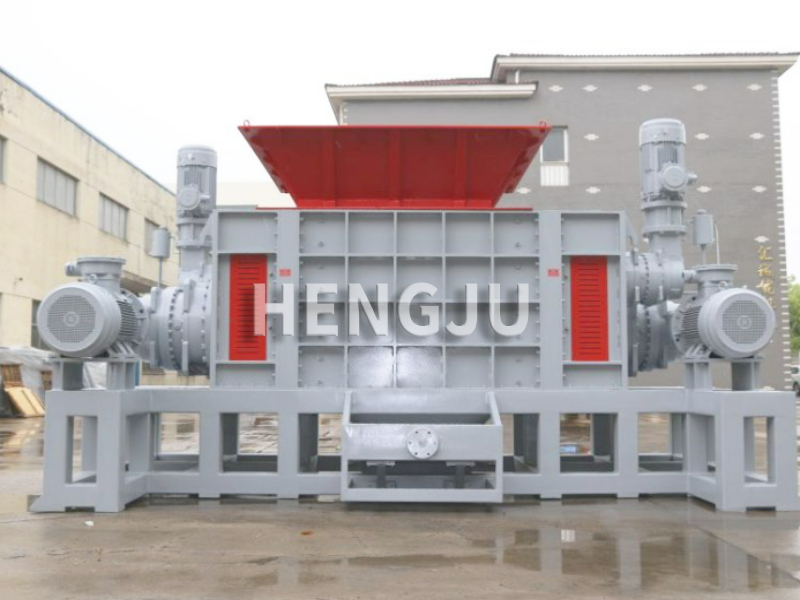

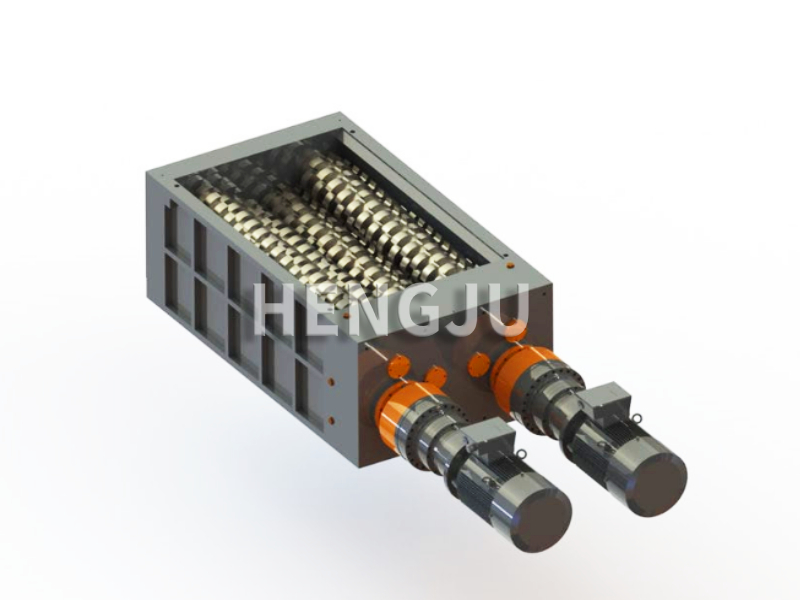

Four Shaft Shredder
Hengju machinery production of single axis, double axis, four axis shredding machine is mainly used for industrial waste, electronic waste, household waste, waste plastic, scrap metal and other shredding processing, so as to achieve the purpose of secondary recycling.

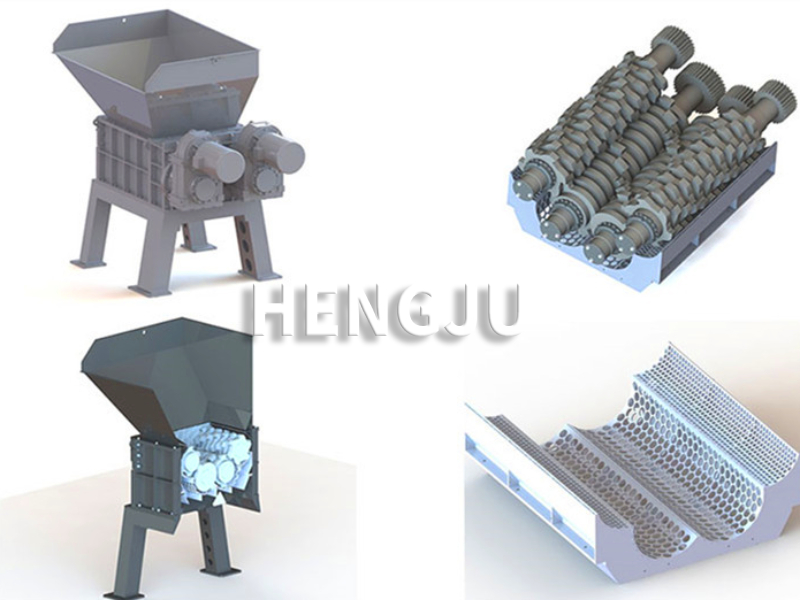

Material through the feeding system into the box, box bearing shredding blade, material after shredding blade tearing, extrusion, shearing and other comprehensive effects, shredding into small pieces of material, discharged from the box.
Hengju mechanical shredding machine product characteristics：
1, The blade is made of alloy steel, long service life.
2, The frame is firm and can resist high torque.
3, Microcomputer (PLC) automatic control, with set start, stop, reverse and automatic reverse control functions.
4, The equipment has low speed, torque, low noise, can meet the environmental standards.
5, Easy to adjust, low maintenance cost, economic and durable.
6, The thickness of the tool and the number of teeth can be replaced according to different materials.
| Model | HJSZ1200 | HJSZ1400 | HJSZ1800 | HJSZ2000 |
|---|---|---|---|---|
Motor power (kw) | 2*15+2*30 | 2*22+2*45 | 2*30+2*55 | 2*37+2*75 |
Discharge height H1 (mm） | 1328 | 1328 | 1400 | 1400 |
Screen aperture (mm) | 60 | 60 | 60 | 60 |
Effective size of crushing chamber (mm） | 1300*1200 | 1500*1400 | 1600*1800 | 1600*2000 |
Overall dimensions (L * W * H) (mm) | 3650*2000*3100 | 4250*2000*3100 | 4360*2200*3630 | 4560*2200*3630 |
Weight (kg) | 12500 | 15500 | 18000 | 19000 |

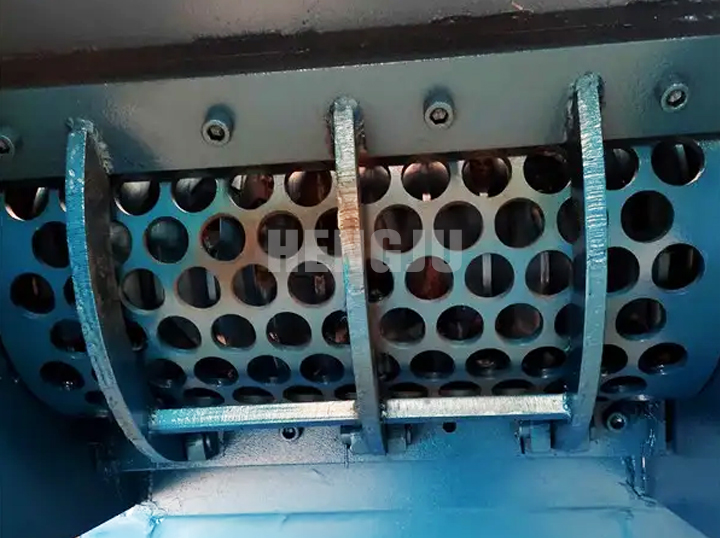

Shredder screen
The shredder is a medium to low speed, large torque crushing equipment widely used in the solid waste treatment industry.

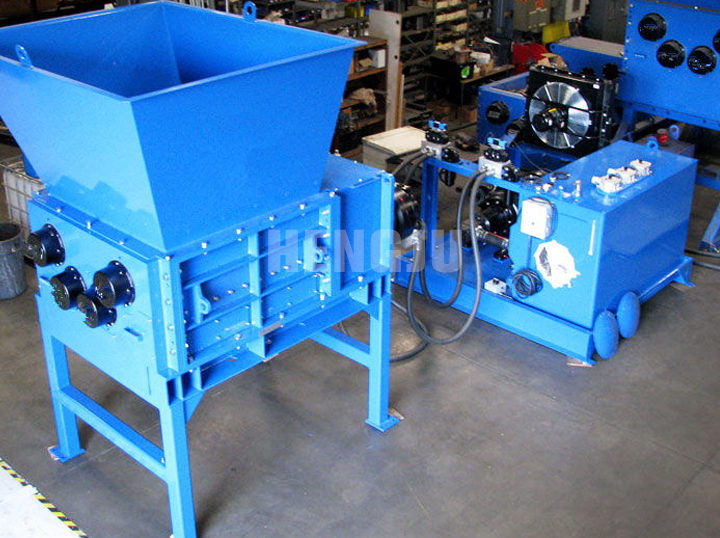

Hydraulic pump station
High precision, high efficiency, and low energy consumption transmission equipment

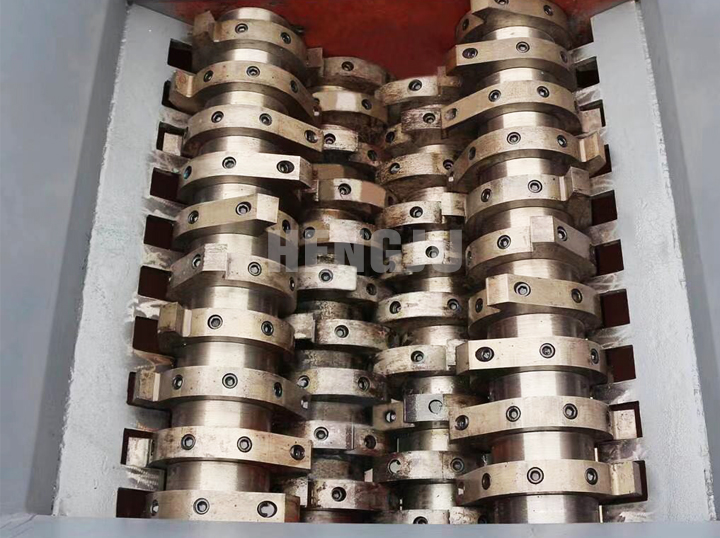

Shredder blade
The shredder blade is forged, annealedheat-treated, tempered and heat-preserved.and finely ground on wire cutting.
-
