Double Single Axis Shredder Machine
Single shaft shredder is mainly used in all kinds of hollow or solid plastic material. The shredder machine is suitable to PE, PP, PET, ABS, PVC and engineering plastics..
Single shaft plastic shredder machine is new designed especially for shredding various big solid materials, unmanageable materials, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.
This plastic shredder machine has the advantages of stable running lower noise and big torque.
The materials are pushed into the shredding chamber by hydraulic. Independent drive system and solid structure make the running stably.
Features:
1. Low noise, stable operation process, no harsh noise, no need to do sound insulation measures;
2. Cooperate with control electric box, low energy consumption, high degree of automatic operation, low failure rate of automatic
operation;

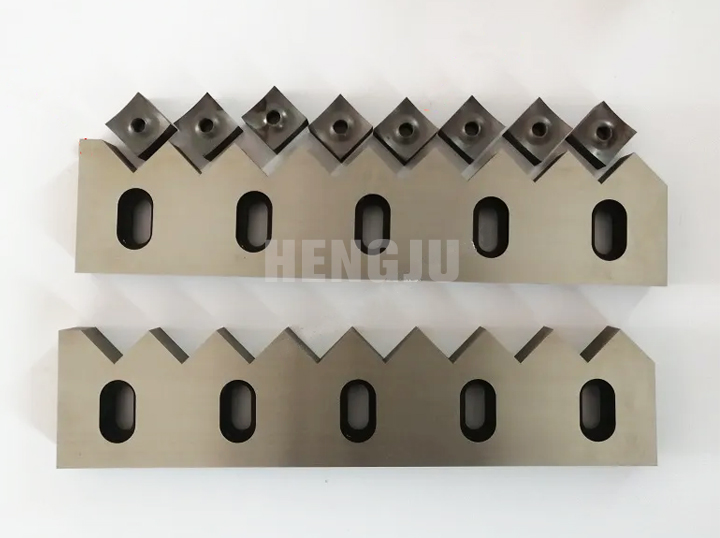

3. Blade wear is slow, replacement frequency is low, blade can be changed Angle for multiple use;
4. Strong versatility, can crush all materials except metal;
5. The control program has the function of automatic overload reversal detection.
| Model | Spindle power(kw) | Spindle Speed(mm) | Conveyor Power(kw） | Number of kKnife Dish（slice） | Equipment weight(ton) |
|---|---|---|---|---|---|
| 2600 | 4-160*2 | 16-25 | 4-3kw | 83 | 36 |
| 2200 | 4-110*2 | 16-25 | 4-3kw | 73 | 28 |
| 1900 | 4-90*2 | 14-25 | 4-3kw | 63 | 22 |
| 1600 | 4-75*2 | 14-25 | 4-3kw | 53 | 14 |
| 1400 | 4-45*2 | 14-35 | 4-3kw | 46 | 12 |
| 1200 | 4-37*2 | 18-35 | / | 40 | 6 |
| 1000 | 4-30*2 | 18-35 | / | 33 | 5 |
| 800 | 4-18.5*2 | 18-35 | / | 28 | 3 |
| 600 | 4-15*2 | 18-20 | / | 20 | 2.5 |
| 400 | 4-7.5*2 | 18-20 | / | 20 | 1.5 |

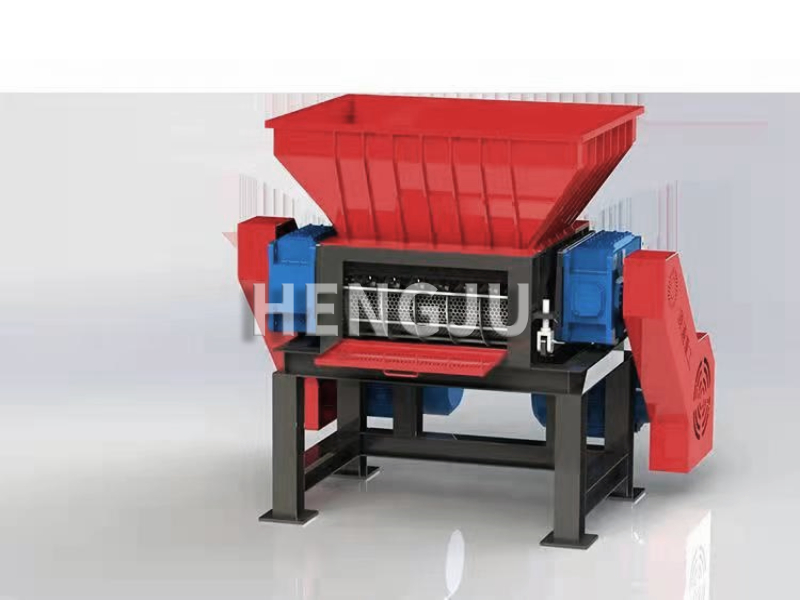

The frame is firm and can resist high torque
Material through the feeding system into the box, box bearing shredding blade, material after shredding blade tearing, extrusion.

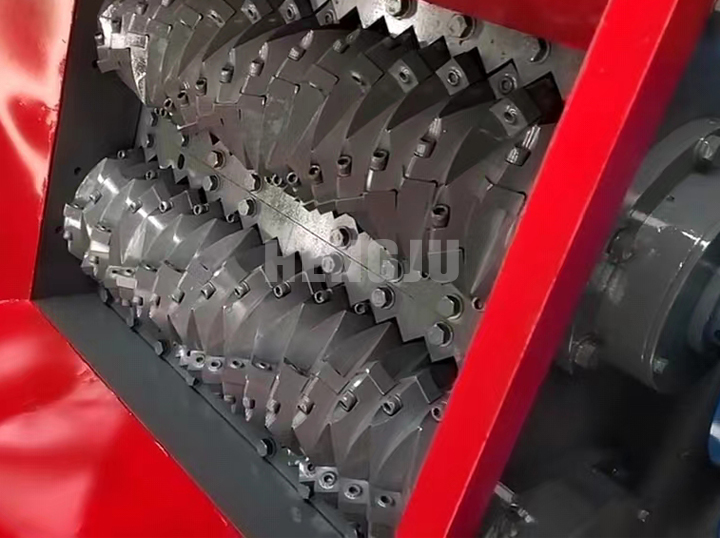

The tool shaft drives the tool to rotate

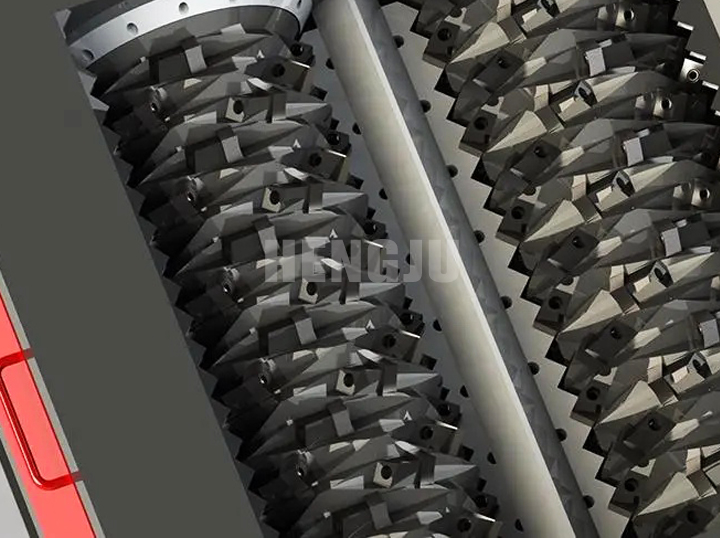

The material entering the crushing chamber is pushed by the feeder into the moving blade shaft and fixed blade.
Double single axis shredder
Suitable for recycling various large solid materials, difficult to handle materials, plastic containers and barrels, plastic mats, etc.
-
