Lead Melting Furnace

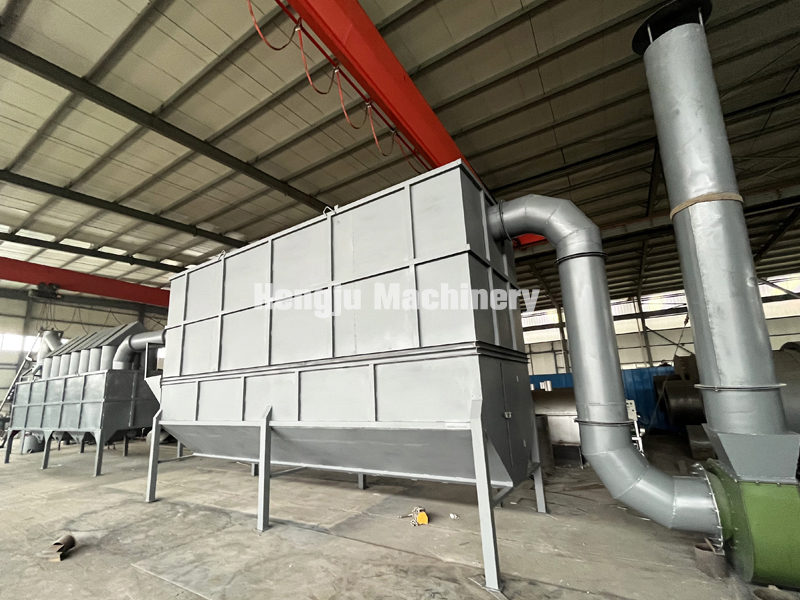

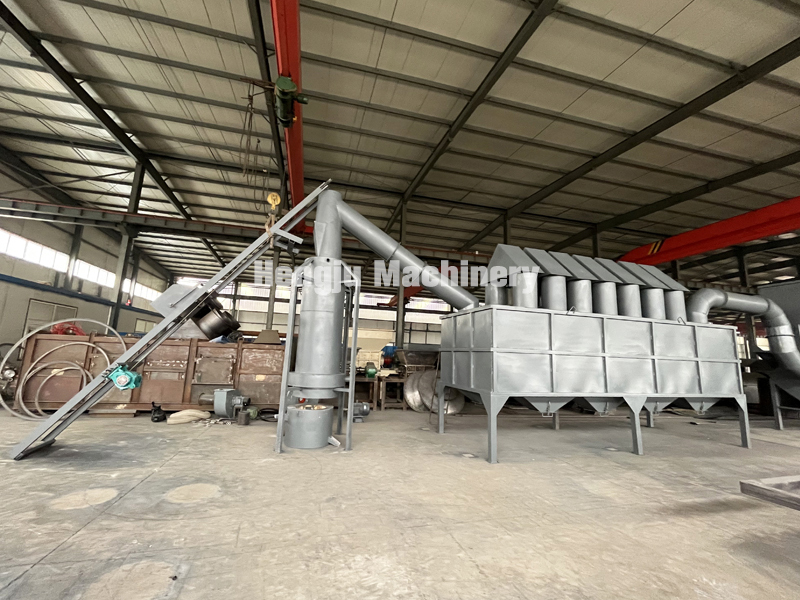

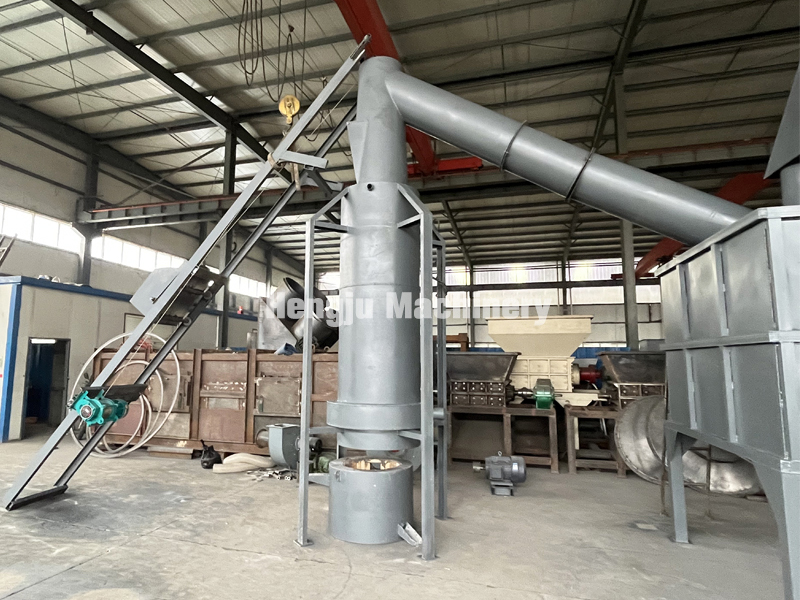

The vertical lead smelting furnace is a new type of environmentally friendly equipment developed through modern technology, precision calculation, and years of use. After countless innovations and renovations, the flue gas is cooled by circulating water and then filtered through a bag filter before being discharged. There is no wastewater discharge during the production process, which is efficient and environmentally friendly. The complete set of equipment consists of a vertical furnace, a melting chamber, a dehydration and reduction greenhouse, a circular flue, a bag filter, and ventilation ducts.
Operation process of vertical lead smelting furnace:
Used car batteries ------ Crushing ------ Sorting ------ Elevator conveying ------ Lead furnace melting ------ Lead refining ------ Free cooling matching cooling furnace and bag dedusting equipment

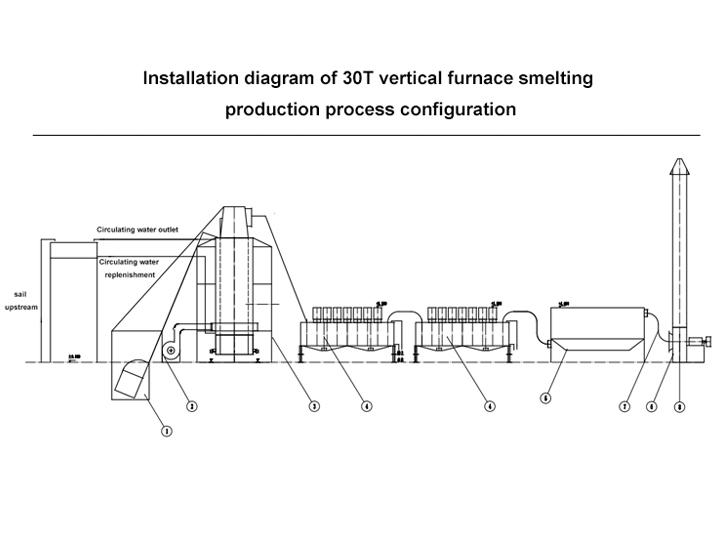

Serial number | Device Name | Quantity | Specification and model | Equipment power |
|---|---|---|---|---|
| 1 | Bucket elevato | 1 | 300 | 1.5KW |
| 2 | Vertical melting furnace | 1 | DN1000/1300*550 | / |
| 3 | Boiler supply fan | 1 | No6.3A | 2-11KW |
| 4 | Cooling and ash collection room | 2 | 6000*2000*3500 | / |
| 5 | 264 bag dust collector | 1 | 6000*4000*4000 | / |
| 6 | Boiler induced draft fan | 1 | No7C | 2-22KW |
| 7 | Smoke exhaust duct | 1 | DN800 | / |
| 8 | Chimney | 1 | DN450X6000 | / |
Vertical smelting furnace with a daily output of 30 tons
We can customize the process flow according to customer requirements and provide free design solutions.
Applicable raw materials
Waste batteries have a relatively high lead content and can be melted to extract lead blocks.

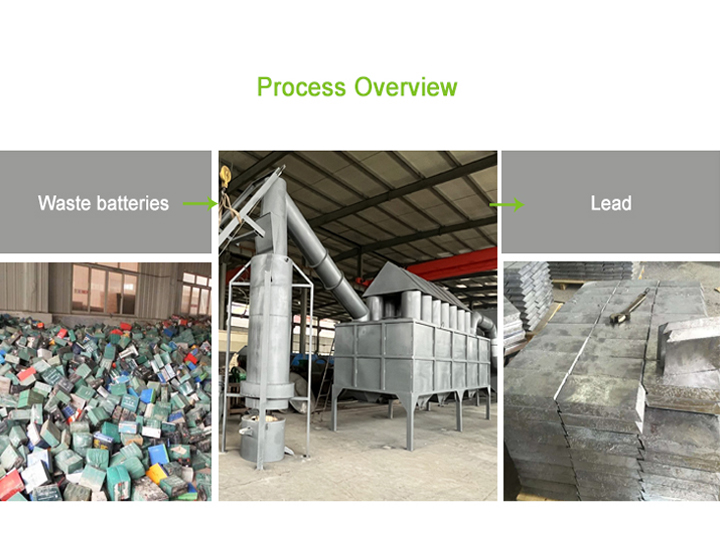

Operation process of vertical lead smelting furnace
Used car batteries-Crushing-Sorting-Elevator conveying-Lead furnace melting-Lead refining-Free cooling matching cooling furnace and bag dedusting equipment.
-
